Acoustic Ceiling Soundproofing — Eliminate Noise from Above

Noise from the floor above is one of the most disruptive acoustic problems in residential and commercial buildings. The combination of impact noise — footsteps, chair scraping, dropped objects — and airborne noise — voices, television, music — transmitted through ceiling structures accounts for the majority of noise-related complaints in UK flats, offices and educational buildings.

Our acoustic ceiling range addresses both noise types through engineered solutions including resilient ceiling bar systems, acoustic ceiling tiles, mineral wool infill products and independent ceiling constructions. Every system is designed to comply with Building Regulations Approved Document E and can be specified to meet enhanced standards including BB93 for educational environments.

Understanding Ceiling Noise Transmission

Impact Noise Through Ceilings

When impact occurs on the floor above, vibration energy travels through the floor structure and radiates from the ceiling below. Addressing impact noise from the ceiling side is inherently less efficient than treating it at source (with acoustic underlay above), but where access to the floor above is not possible — as in most tenanted flats and commercial buildings — ceiling treatment is the only practical option.

Airborne Noise Through Ceilings

Airborne noise sets the floor-ceiling structure into vibration, which then radiates downward. Adding mass (acoustic boards, MLV) and decoupling the ceiling from the structure (resilient bars, independent ceiling systems) addresses this effectively.

Flanking Transmission

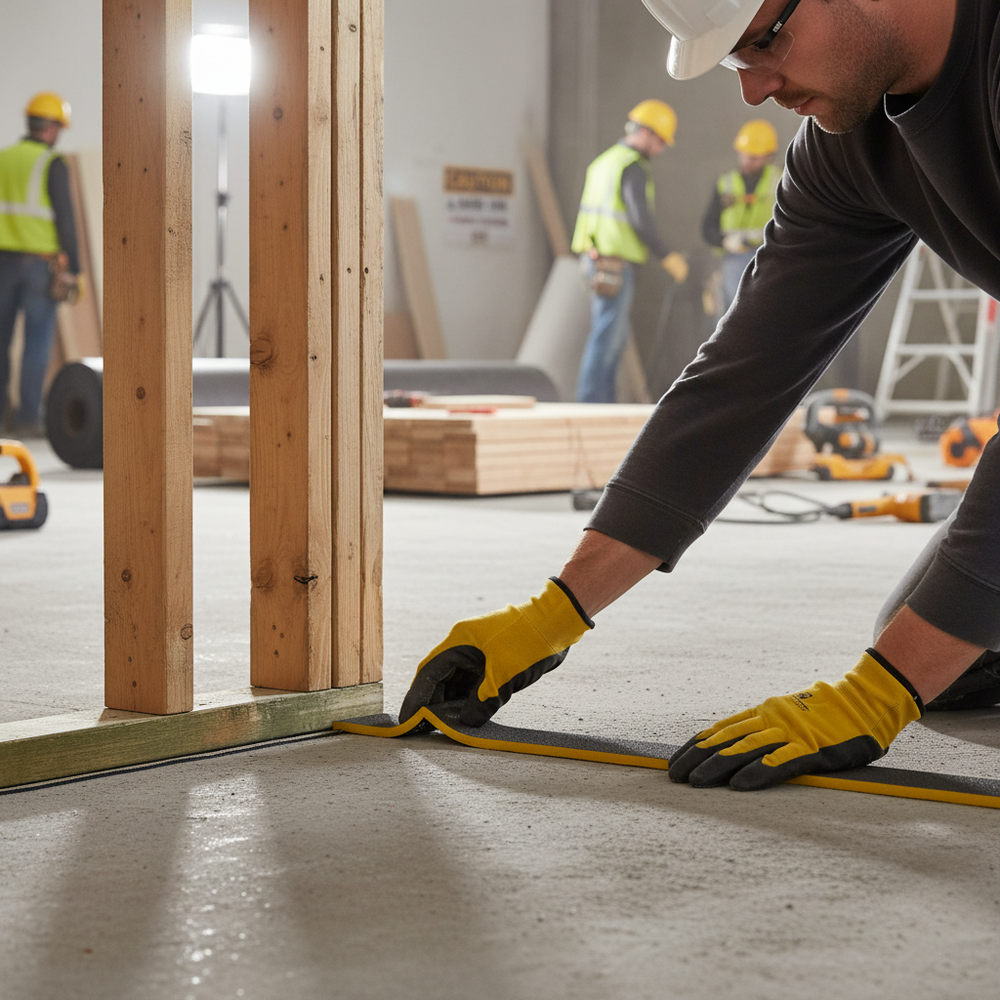

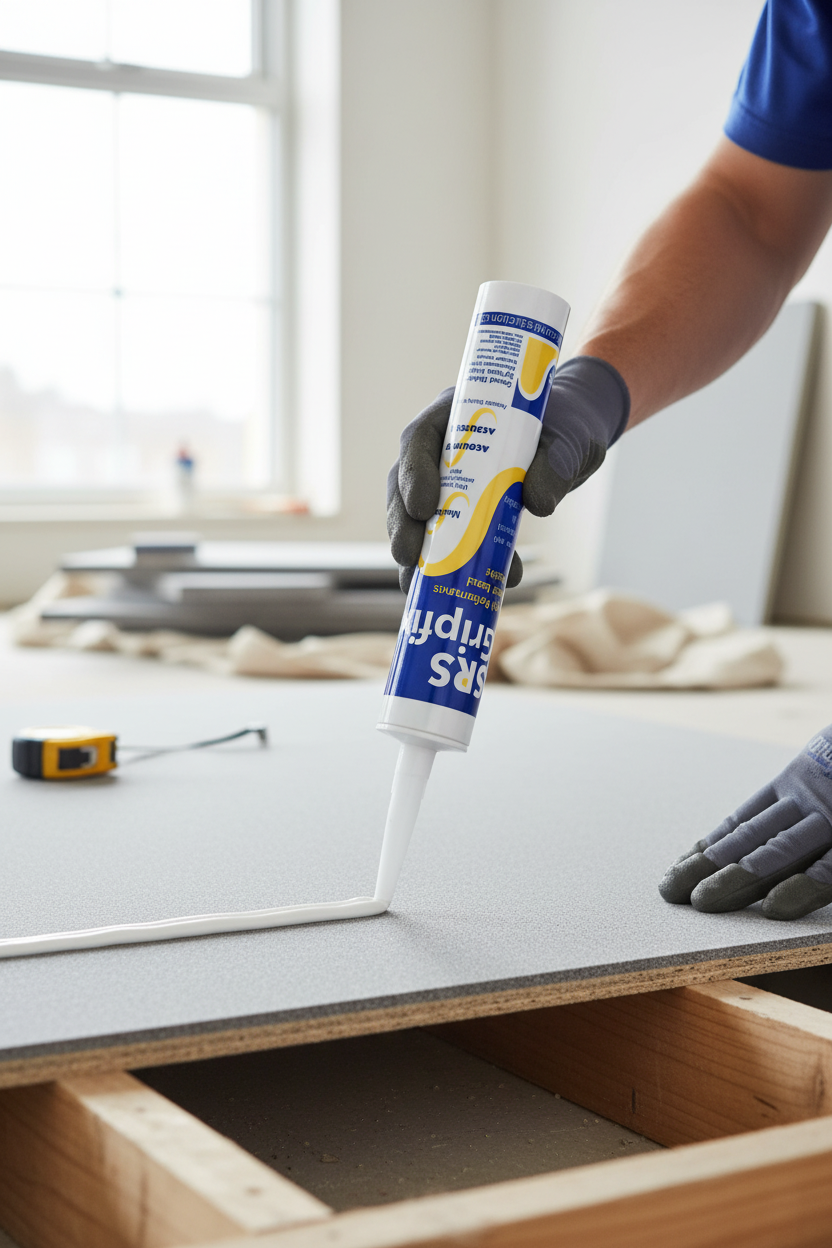

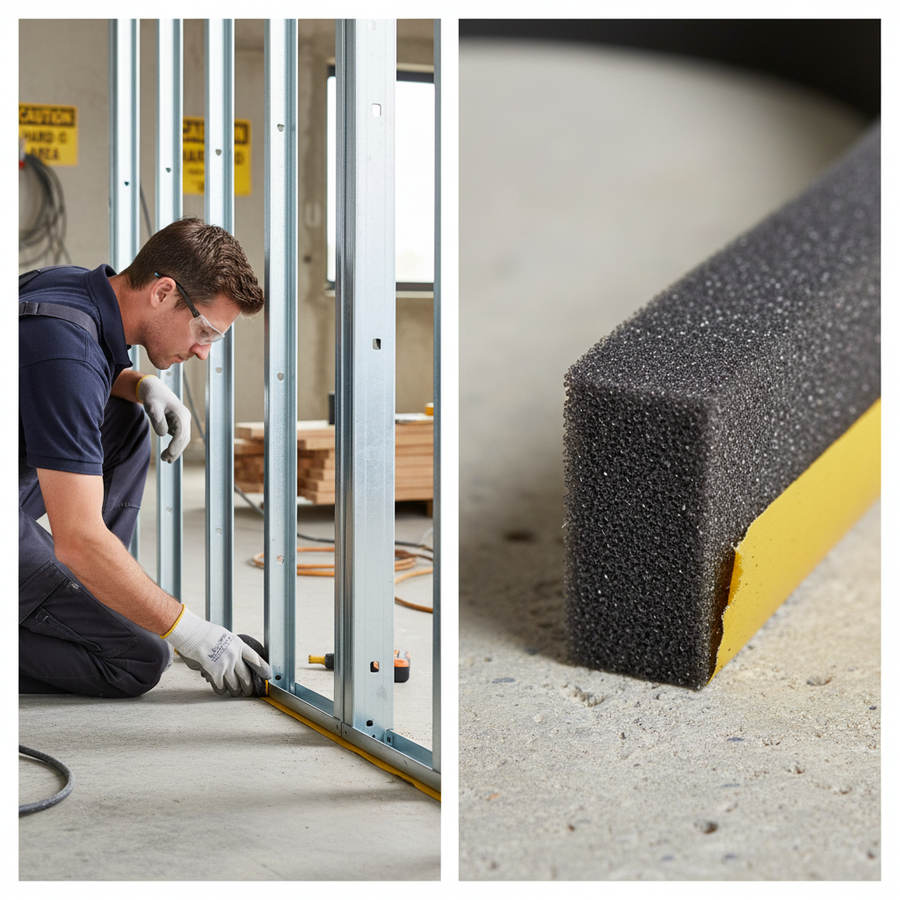

Sound frequently bypasses the primary floor-ceiling element by travelling along walls, through party wall junctions, and via service voids. A complete acoustic ceiling solution must address these flanking paths — typically using perimeter acoustic strips, sealing all penetrations with acoustic sealant, and ensuring continuous resilient isolation around the ceiling perimeter.

Acoustic Ceiling Product Range

Resilient Ceiling Bar Systems

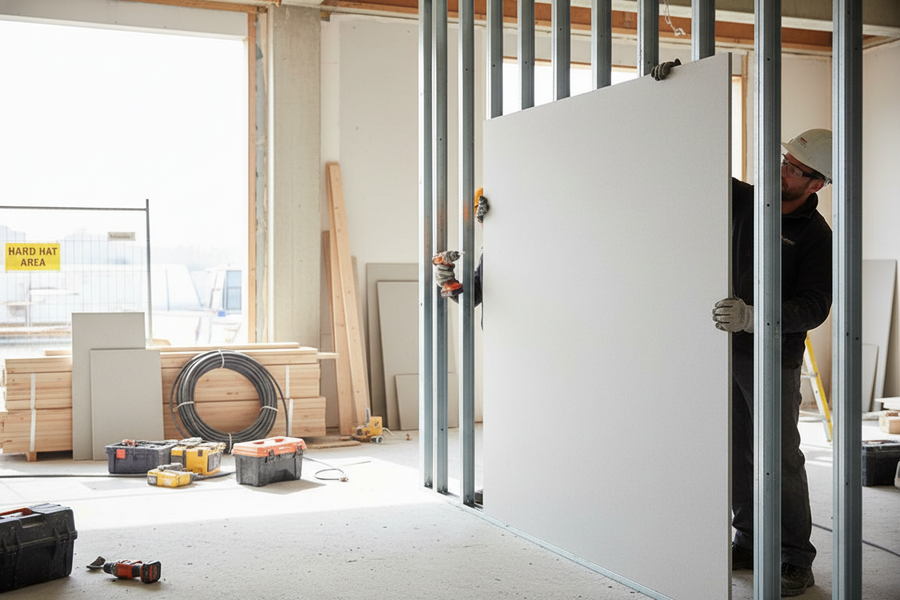

Resilient ceiling bars are the most widely used professional method for improving ceiling acoustic performance in existing buildings. Steel bars are fixed to the underside of the floor structure via resilient clips that isolate them from direct structural contact. Plasterboard is then fixed to the bars, creating a decoupled secondary ceiling that cannot transmit vibration directly.

• Typical airborne improvement when combined with mineral wool: DnT,w +8 to +12 dB
• Impact noise improvement: L'nT,w –5 to –8 dB
• Suitable for existing concrete and timber floor structures
• Minimum ceiling void depth: 100mm (bars + plasterboard)
• Compatible with 12.5mm or 15mm acoustic-grade plasterboard

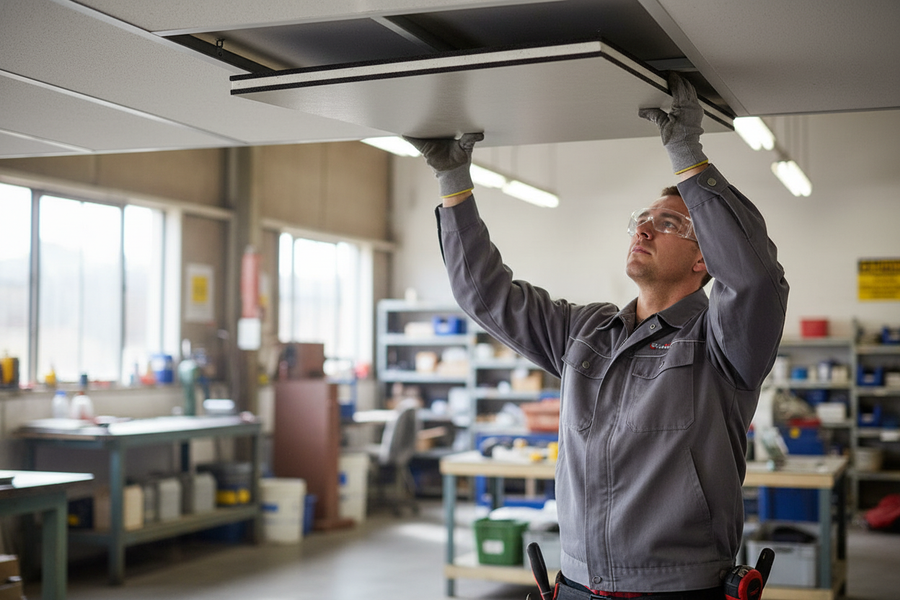

Acoustic Ceiling Tiles

Acoustic ceiling tiles provide sound absorption within a space — reducing reverberation time and controlling echo — rather than blocking transmission from above. They are specified primarily in commercial, educational and healthcare environments where speech intelligibility and background noise levels are the primary acoustic concern.

• Sound absorption coefficient (αw): 0.65–0.95 (product-dependent)
• Suitable for suspended grid ceiling systems
• Available in Class A absorption rating (αw ≥ 0.90)
• Fire rated options available for commercial and public buildings
• Addresses BB93 reverberation requirements for schools and colleges

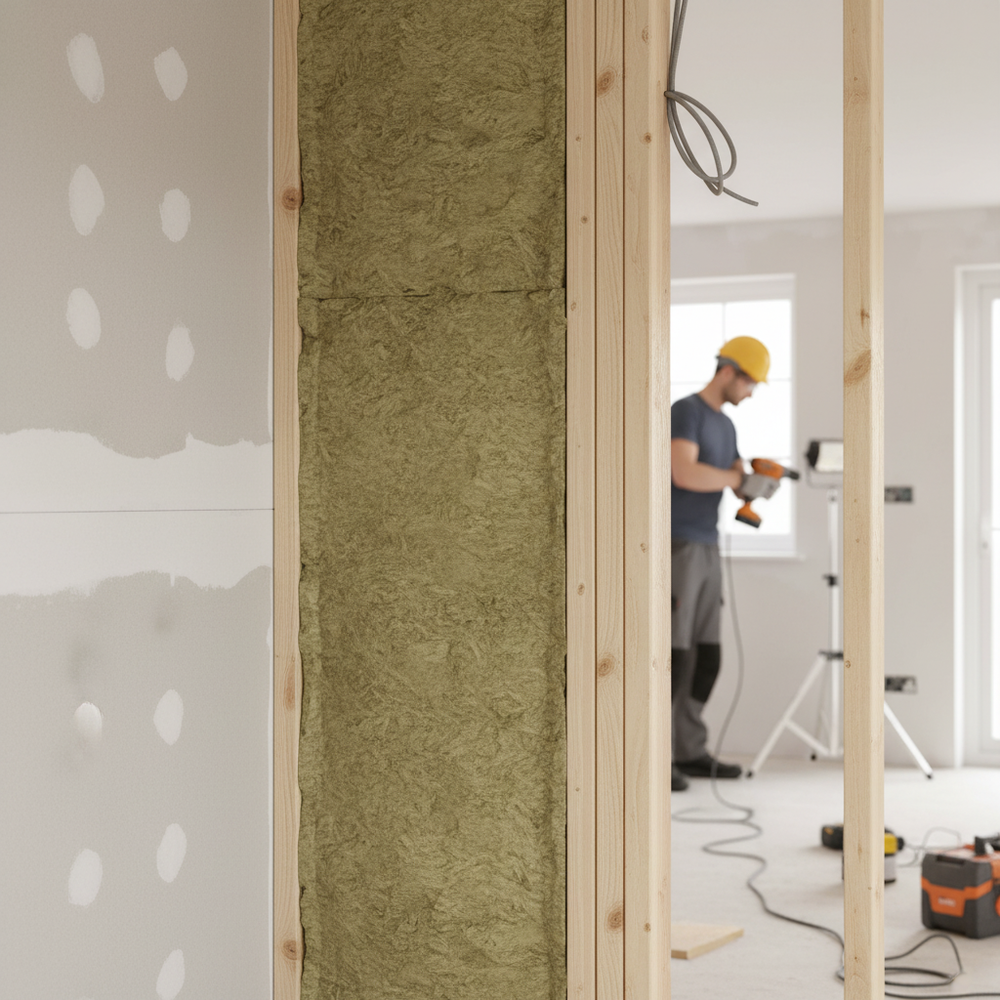

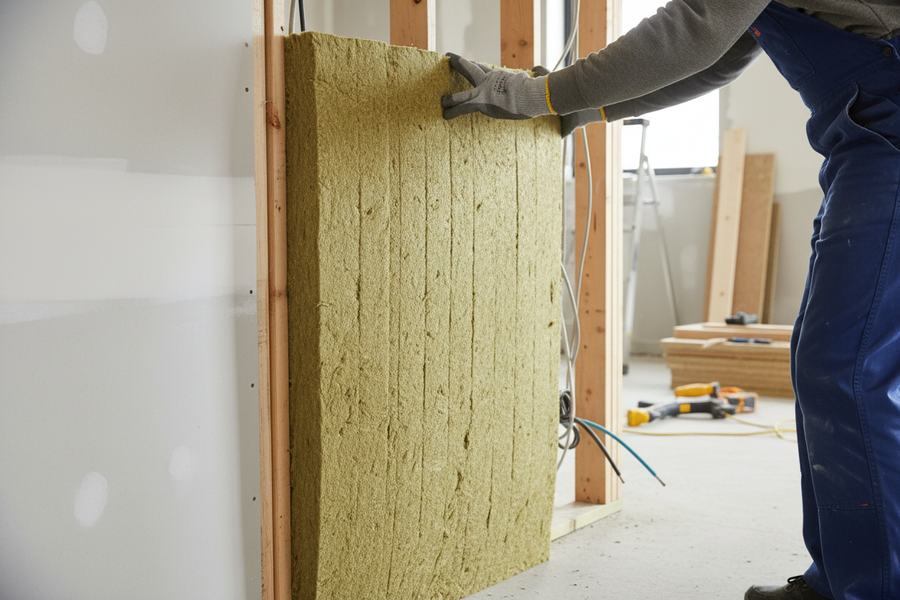

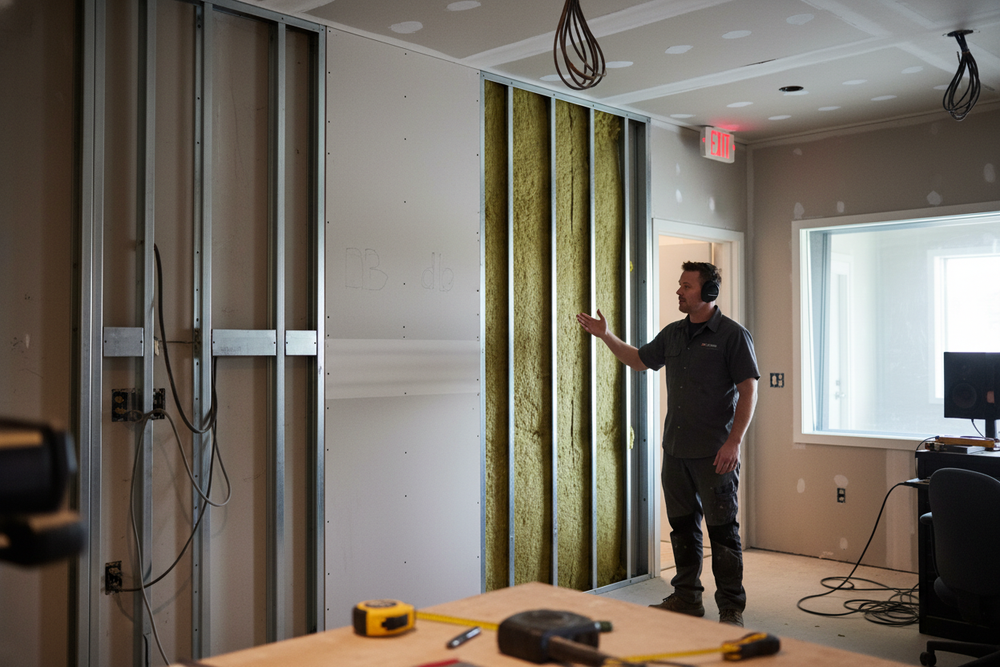

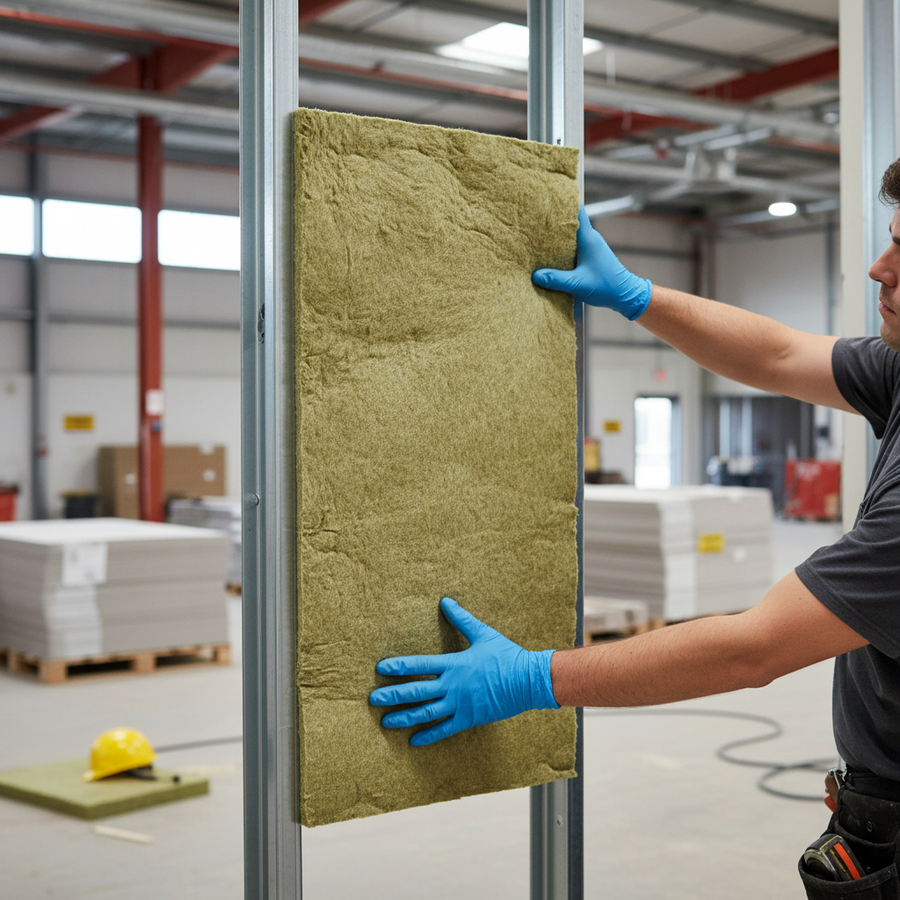

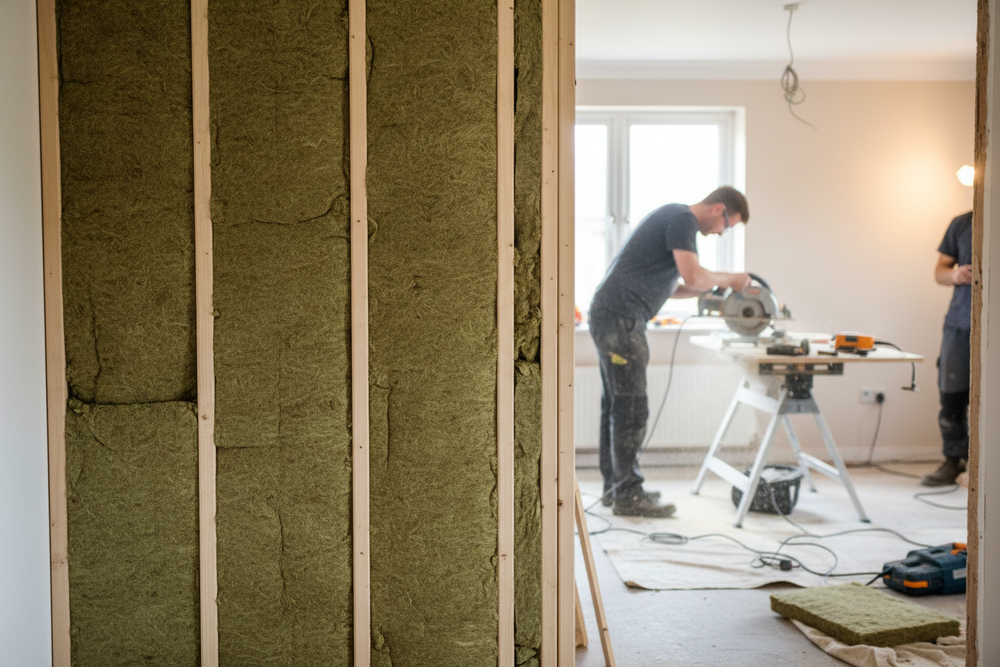

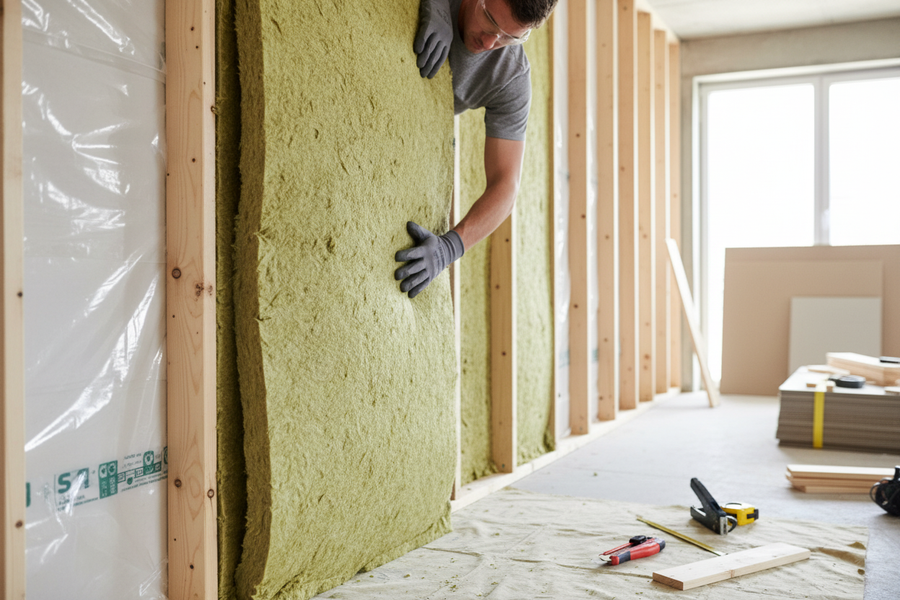

Acoustic Mineral Wool Infill

Installing high-density acoustic mineral wool within the ceiling void — between joists or above suspended ceiling tiles — provides significant improvement in both airborne sound insulation and reverberation control. The mineral wool absorbs sound energy in the void, preventing it from building up and transmitting through the ceiling structure.

• 60 kg/m³ grade recommended for acoustic ceiling voids
• Airborne insulation improvement: DnT,w +4 to +8 dB (when combined with decoupled ceiling)
• Also improves thermal performance of the ceiling construction
• Euroclass A1 (non-combustible) fire classification

Independent Ceiling Systems

For maximum acoustic performance — recording studios, specialist commercial spaces, high-end residential conversions — an independent ceiling structure completely isolated from the building fabric provides the highest achievable acoustic separation. The secondary ceiling is supported on acoustic isolation mounts rather than fixing to the existing structure. Combined with heavy mass elements and mineral wool, independent ceilings can achieve DnT,w values of 60 dB or above.

Building Regulations Part E — Ceiling Requirements

Separating floors (which include the floor-ceiling construction between dwellings) must meet:

Note that Part E targets are for the complete floor-ceiling construction. Treating only the ceiling (without floor treatment above) will improve airborne performance but has limited impact on impact noise transmission — for the latter, acoustic underlay or resilient floor treatment on the upper side is also necessary.

BB93 — Schools and Educational Buildings

BB93 specifies reverberation time requirements for educational spaces that significantly exceed general building regulation minimums. Acoustic ceiling tiles or absorptive ceiling panels are typically required to achieve the RT60 targets for classrooms (≤ 0.6s for standard classrooms) and specialist spaces. Our acoustic ceiling tile range is tested and certified to Class A and Class B absorption ratings appropriate for BB93 compliance.

Application Guides

Flats and Apartments

The most common ceiling application. Where access to the floor above is limited, a combination of resilient ceiling bar + acoustic plasterboard + mineral wool infill is the standard professional approach. This system regularly achieves Part E compliance in conversion projects when properly installed and with flanking paths addressed.

Commercial Office Buildings

Open-plan offices require acoustic ceiling treatment to control reverberation (Class A tiles) and often to provide separation between meeting rooms and open areas. Our acoustic ceiling tile and mineral wool systems address both requirements within standard suspended grid ceiling configurations.

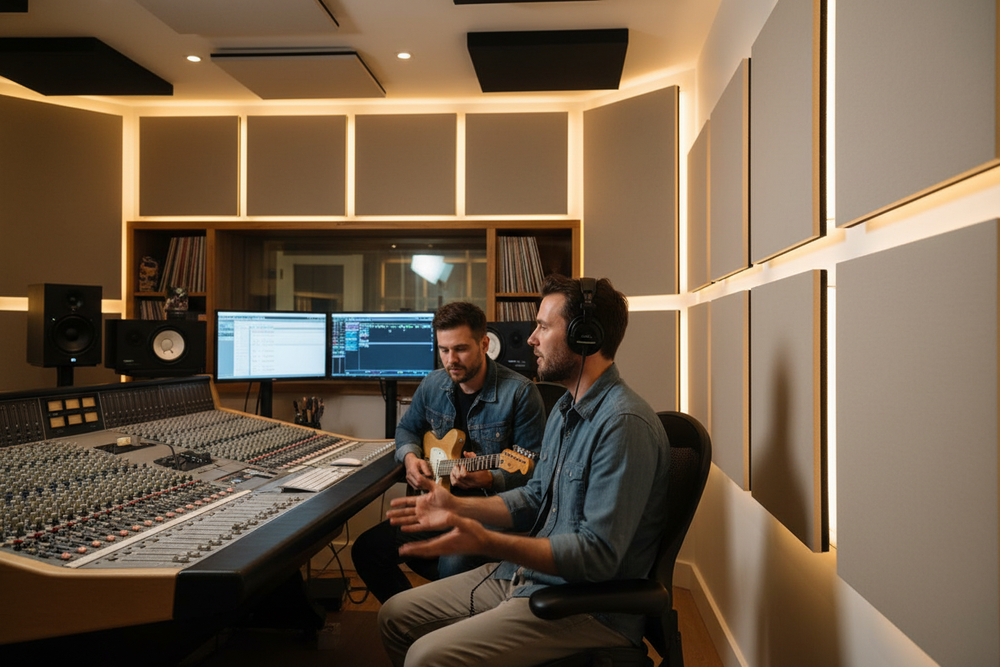

Home Cinema and Recording Studios

Specialist requirements. Recording studios require extremely low background noise levels (NC-15 to NC-20) and controlled RT60 values. This demands independent ceiling construction on isolating mounts, heavy mass ceiling elements, and highly absorptive treatment. Our technical team can provide full studio ceiling specifications.

Healthcare Environments

NHS and private healthcare buildings require acoustic ceiling treatment for both privacy (speech intelligibility between clinical areas) and infection control compatibility. Our ceiling products include options with appropriate surface finishes for healthcare environments.

Frequently Asked Questions

How much noise can an acoustic ceiling reduce?

A standard resilient bar system with acoustic plasterboard and mineral wool infill typically improves airborne sound insulation by 8–12 dB (DnT,w) over an untreated ceiling, and impact noise by 5–8 dB (L'nT,w). Independent ceiling systems achieve significantly more — 15–20+ dB improvement is achievable in well-executed installations. The precise improvement depends heavily on the existing floor-ceiling construction and flanking conditions.

Do I need planning permission to add acoustic ceiling treatment?

In most cases, internal acoustic ceiling treatment is considered permitted development and does not require planning permission. However, if the building is listed or in a conservation area, or if the works involve structural modifications, you should consult your local planning authority. Building Regulations notification may be required for work in flats and HMOs — consult your building control officer.

What is a resilient ceiling bar and how does it work?

A resilient ceiling bar is a formed steel channel with built-in resilience through perforations or a flanged profile that allows slight deflection. When fixed to the floor structure above via resilient clips (rather than direct fixing), the bar is isolated from the structure. Plasterboard fixed to the bar cannot transmit vibration directly to the floor structure above — instead, the resilient layer absorbs and dissipates vibrational energy. This is the principle of decoupling, and it is fundamental to achieving high acoustic performance in ceiling systems.

Can I add acoustic treatment to an existing ceiling?

Yes — and this is the most common application of our acoustic ceiling range. Resilient bars are fixed to the underside of an existing ceiling (direct to joists or concrete soffit), and a new plasterboard layer is applied below. The ceiling loses some height (typically 100–150mm) but the acoustic improvement can be substantial. For flat conversions where Part E compliance is required, this approach combined with acoustic underlay above is the standard professional method.

What STC/DnT,w rating should I aim for in a residential ceiling?

Building Regulations Part E sets a minimum of DnT,w + Ctr ≥ 45 dB for new builds, ≥ 43 dB for conversions. However, occupant satisfaction research consistently shows that these minimum standards are perceived as allowing significant audibility of neighbours. For genuine acoustic comfort, targeting DnT,w ≥ 52 dB is recommended where the construction allows. Our technical team can advise on achieving enhanced performance within your specific site constraints.
