Acoustic Rubber Insulation

Acoustic rubber insulation is one of the most technically effective materials available for controlling sound in UK buildings and vehicles. Its exceptionally high mass-to-thickness ratio, inherent damping properties, and resistance to moisture make it the go-to solution for demanding applications — from under-screed barriers in concrete floor systems to vehicle panel treatment. This guide covers every aspect of acoustic rubber, from the physics of how it works to specifying the right product for your project.

All products available for next-day UK delivery. Trade pricing available — call our acoustic team for bespoke project quotations.

What Is Acoustic Rubber Insulation?

Acoustic rubber insulation encompasses a range of rubber-based materials specifically engineered for sound control applications. Unlike general-purpose rubber (used for sealing or cushioning), acoustic rubber is formulated for maximum sound isolation performance across the full frequency spectrum, with particular strength in the difficult low-to-mid frequency range (63 Hz–500 Hz).

The base material is typically natural or synthetic rubber compounded with fillers to achieve high density (900–2,500 kg/m³, compared to 1,200 kg/m³ for concrete) in thin profiles. This high density provides excellent mass-law performance without the thickness penalties of fibre-based insulation.

Key Variants

• Acoustic Rubber Membranes (Under-Screed) — 3mm–10mm dense rubber sheets laid between structural floor and screed. Primary function: ΔLw improvement for impact noise.
• Mass Loaded Vinyl (MLV) — technically a filled PVC/vinyl compound rather than true rubber, but functions identically. Available in 2mm–5mm thicknesses at 2–5 kg/m². The term is often used interchangeably with acoustic rubber membrane.

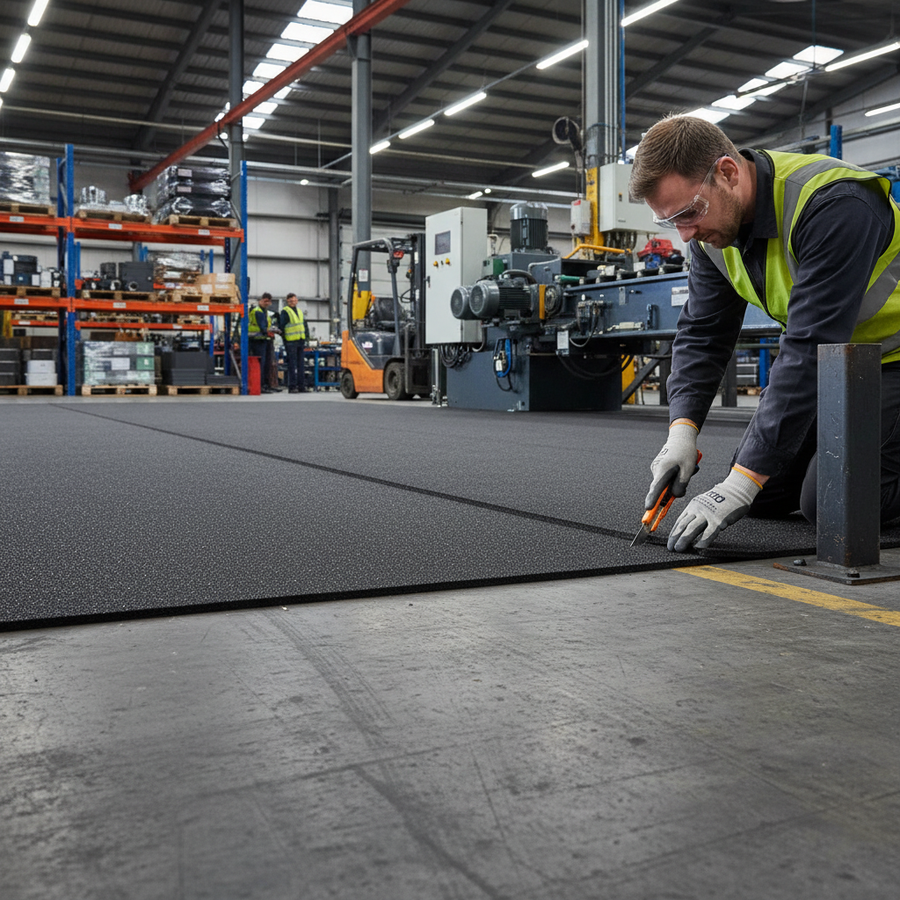

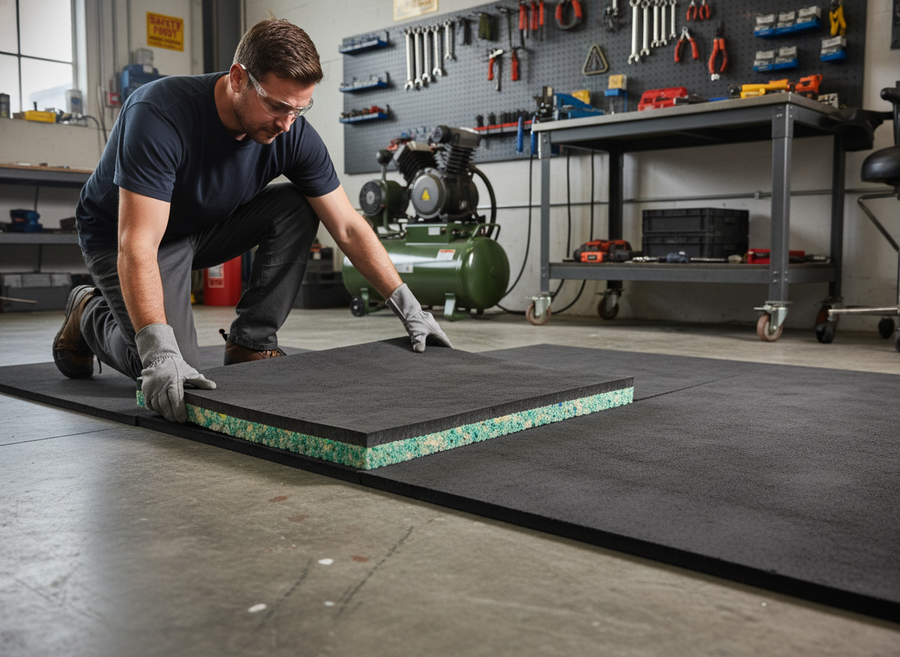

• Recycled Rubber Acoustic Underlay — granulated recycled tyre rubber (SBR) bonded into resilient mats. Excellent ΔLw performance, highly sustainable, typically 6mm–25mm thick.
• CLD (Constrained Layer Damping) Automotive Mats — butyl rubber bonded to aluminium constraining layer. Applied directly to vehicle panels. 1.8mm–3.7mm thick.
• Acoustic Rubber Isolation Strips & Bearings — used under stud walls, floor battens, and machinery bases to prevent vibration transmission. Typically neoprene or natural rubber, 5mm–25mm.

How Acoustic Rubber Works — Technical Explanation

Mass Law Performance

At its simplest, acoustic rubber works through mass. The Mass Law predicts that for a single-leaf partition, the sound reduction index (Rw) increases approximately 6 dB for each doubling of surface mass. A 5 kg/m² acoustic rubber membrane achieves an Rw of approximately 27–29 dB as a standalone barrier — compare this to 6mm standard rubber sheet at ~3 kg/m² achieving only ~21–23 dB.

When used within a system (e.g., rubber membrane + concrete slab + screed), the total system Rw is not simply additive — flanking paths and decoupling effects become significant. However, a quality rubber membrane consistently contributes 5–12 dB of system improvement.

Resilience and Decoupling

Resilient rubber materials deform under dynamic load (footfall, vibration) and then recover. This resilience absorbs the kinetic energy of impact before it can be transmitted as structural vibration. The dynamic stiffness (s') of a resilient rubber layer is the key parameter — lower s' values indicate better low-frequency impact isolation.

Quality under-screed acoustic rubber membranes achieve dynamic stiffness values of 8–30 MN/m³. The screed above must be sufficiently thick (typically 65mm+ for impact performance) and floating (unconstrained at perimeter) to achieve the full ΔLw benefit.

Constrained Layer Damping (Automotive)

CLD mats function through the shear deformation of the visco-elastic butyl rubber layer between the panel and the constraining aluminium. When the panel vibrates, the butyl layer is forced to shear, dissipating vibrational energy as heat. This is quantified by the damping loss factor (η): quality CLD mats achieve η = 0.15–0.25, reducing panel resonance by 15–25 dB at critical frequencies.

Performance Data — Acoustic Rubber Specifications

Building Regulations & Compliance

Acoustic rubber membranes used in separating floors must contribute to meeting Approved Document E performance requirements:

• Impact noise (LnT,w ≤ 62 dB): Under-screed acoustic rubber is the primary solution for concrete separating floors between flats and apartments
• Airborne noise (DnT,w ≥ 45 dB): High-density rubber membrane contributes but typically requires additional mass layers above or below to meet the airborne target

For timber separating floors, under-screed rubber is rarely used (the structural system is different). Instead, acoustic rubber or neoprene isolation strips are used under battens or platforms.

Robust Details for concrete floors (e.g., E-FC-1, E-FC-2) specify under-screed rubber membrane type, minimum mass, and screed depth. Ensure the product you specify matches the Robust Detail requirements precisely — substituting a lower-spec product may invalidate the Robust Detail and require pre-completion testing.

BB93 — Schools

In school buildings on concrete floors, acoustic rubber under-screed membrane is commonly specified to control impact noise from corridors to classrooms below. BB93 typically requires LnT,w ≤ 55 dB between general teaching spaces — achievable with a 6mm+ high-density membrane and 75mm+ floating screed.

Application Guide

Under-Screed (Concrete Separating Floors)

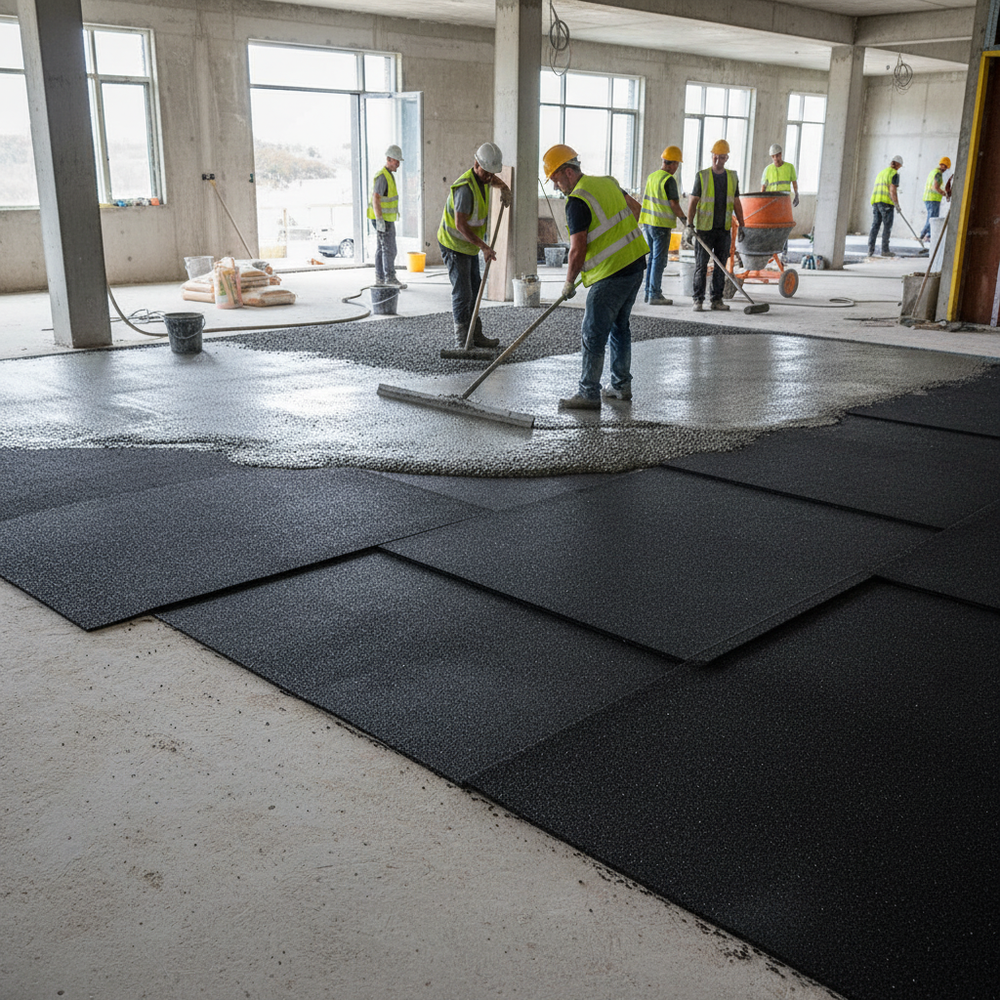

The most common building application. The rubber membrane is laid over the concrete structural slab, turned up at perimeter walls to create an acoustic flanking strip, before the screed is poured. Critical requirements: membrane must be continuous (joints taped), screed must be floating (not bonded to walls or existing screed at edges), and minimum 65mm screed depth for residential use (75mm recommended).

Under-Tile and Under-Laminate Floating Floor

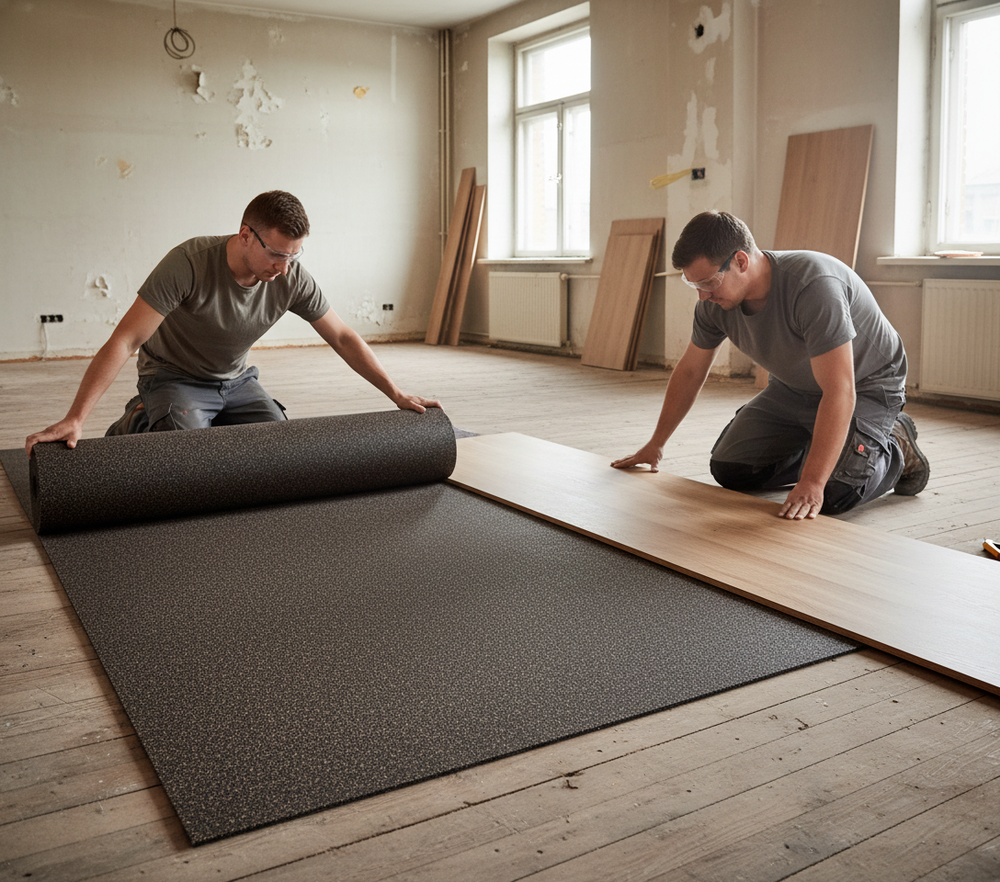

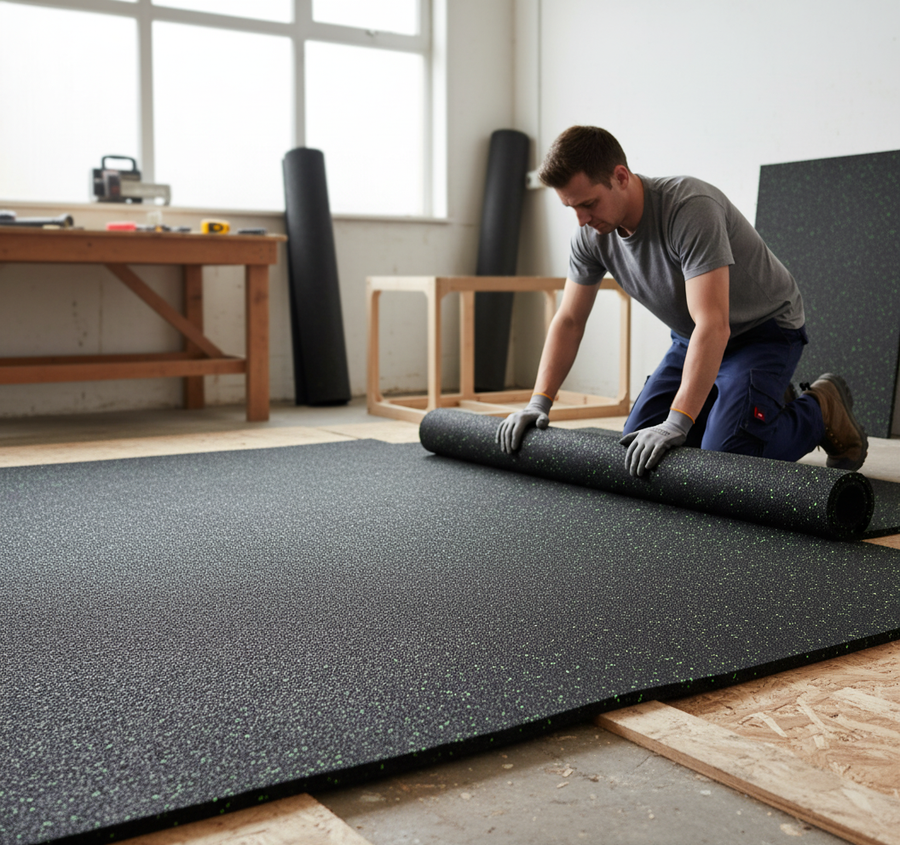

Recycled rubber acoustic underlay is ideal beneath tile or engineered wood flooring in apartments. The material is semi-rigid, compressible under point loads, and achieves ΔLw 17–22 dB. Combined with the mass of the floor finish above, this provides meaningful impact noise reduction without screed.

Wall and Ceiling Barriers (Mass Loaded Vinyl)

MLV/acoustic rubber membranes can be used as barrier layers within wall and ceiling build-ups. Fixed between plasterboard layers, or behind stud cavity, they add mass-law performance without significant thickness. This is valuable in retrofit situations where cavity space is limited.

Automotive — Vehicle Panels

CLD butyl mats are the primary tool for automotive acoustic treatment. Application sequence: (1) strip out trim/panels, (2) degrease all metal surfaces, (3) apply CLD mat in panels covering 50–70% of each panel area (prioritising central sections where vibration amplitude is highest), (4) apply closed-cell foam barrier over CLD for additional airborne attenuation, (5) refit trim. Results: 8–15 dB interior noise reduction at typical road speed.

Van & Campervan Conversions

Van conversions require a layered approach combining CLD mat (panel damping) + closed-cell foam or MLV (airborne barrier) + mineral wool or thinsulate (thermal/acoustic absorption) + optional cork layer (floor resilience and absorption). Total noise reduction of 10–20 dB is achievable in a properly executed van conversion.

Industrial — Machinery Isolation

Neoprene and natural rubber isolation bearings and pads prevent machine vibration from transmitting to building structure. Dynamic stiffness values must match the machine's excitation frequency — an incorrectly specified isolator can amplify rather than reduce vibration. Always consult the manufacturer's load/frequency data when selecting isolation mounts.

Buying Guide — Choosing the Right Acoustic Rubber

For Concrete Separating Floors (New Build / Conversion):

→ Choose: Under-screed acoustic rubber membrane, minimum 6mm, minimum 1,200 kg/m³ density, ΔLw ≥ 22 dB. Check it's listed in Robust Details for your construction type.

For Floating Floor (Existing Flat / Apartment):

→ Choose: Recycled SBR rubber underlay 10–15mm or cork underlay 6mm+, with appropriate ΔLw for your target Ln,w. For Part E compliance, minimum ΔLw 17 dB; for higher performance, ΔLw 22+ dB.

For Walls (Barrier Layer):

→ Choose: Mass Loaded Vinyl (MLV) 5 kg/m², fixed to plasterboard or wall surface and overlapped at joints. Best combined with mineral wool in the cavity.

For Vehicles (Cars, Vans, Trucks):

→ Choose: CLD butyl/aluminium mat for panel damping. Premium 3mm+ mats for better η values and low-frequency damping. Combine with closed-cell foam for airborne attenuation.

Installation Overview

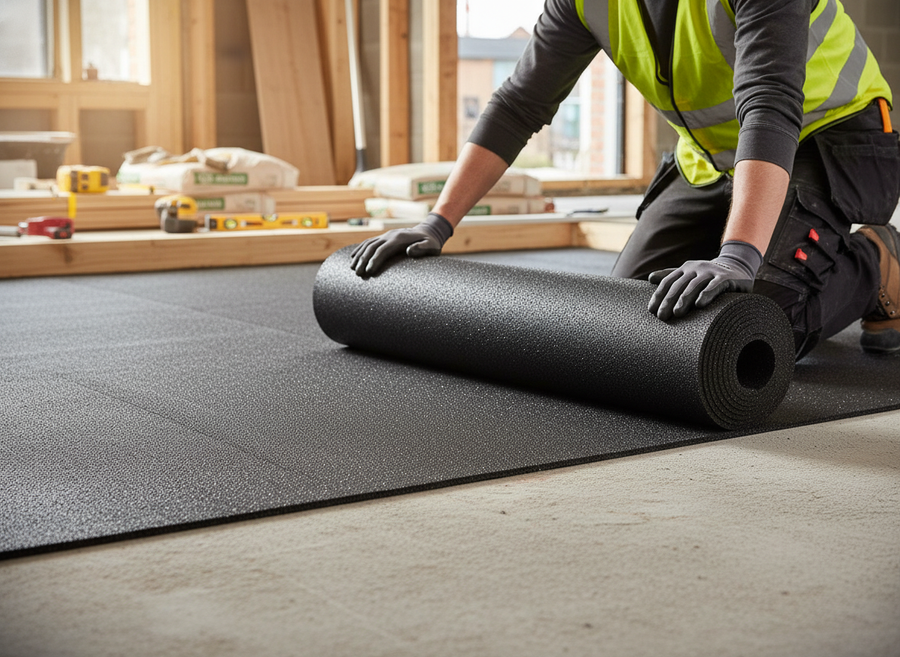

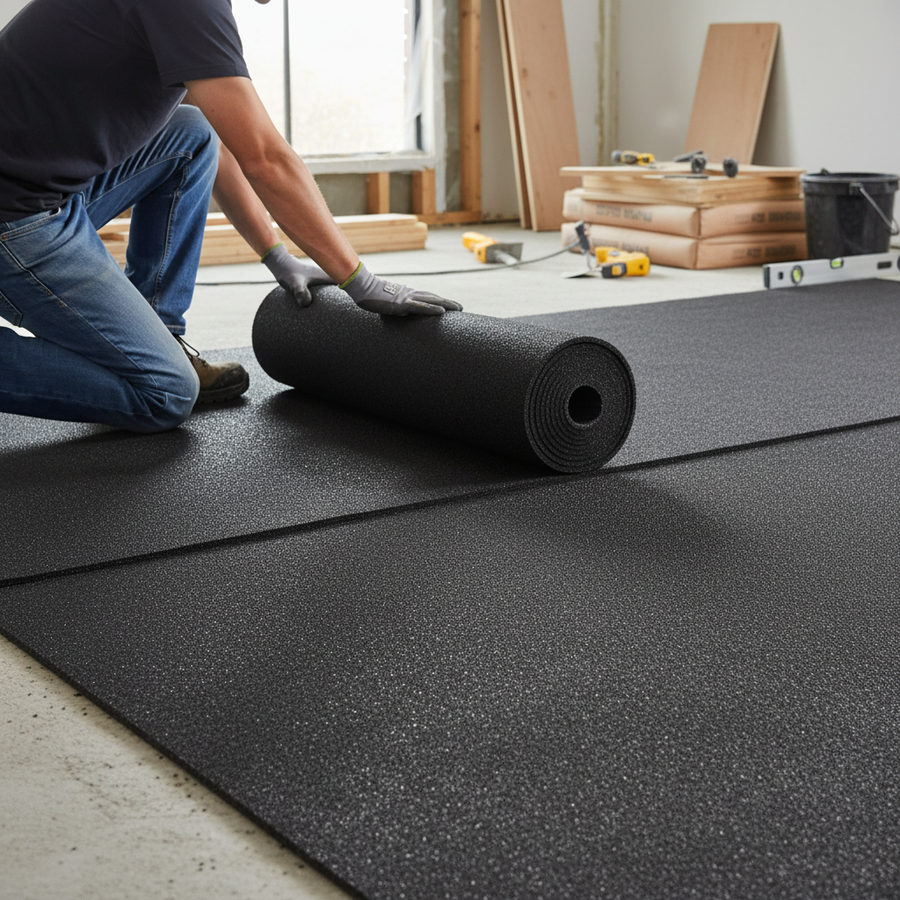

Under-Screed Rubber Membrane

1. Clean structural slab — remove dust, debris, and any raised fixings
2. Lay membrane in one direction, butting edges tightly (do not overlap for floor membranes)
3. Tape all joints with compatible acoustic tape
4. Turn membrane up at walls minimum 50mm (to form acoustic flanking strip)
5. Apply perimeter isolation strip at wall base before screed pour

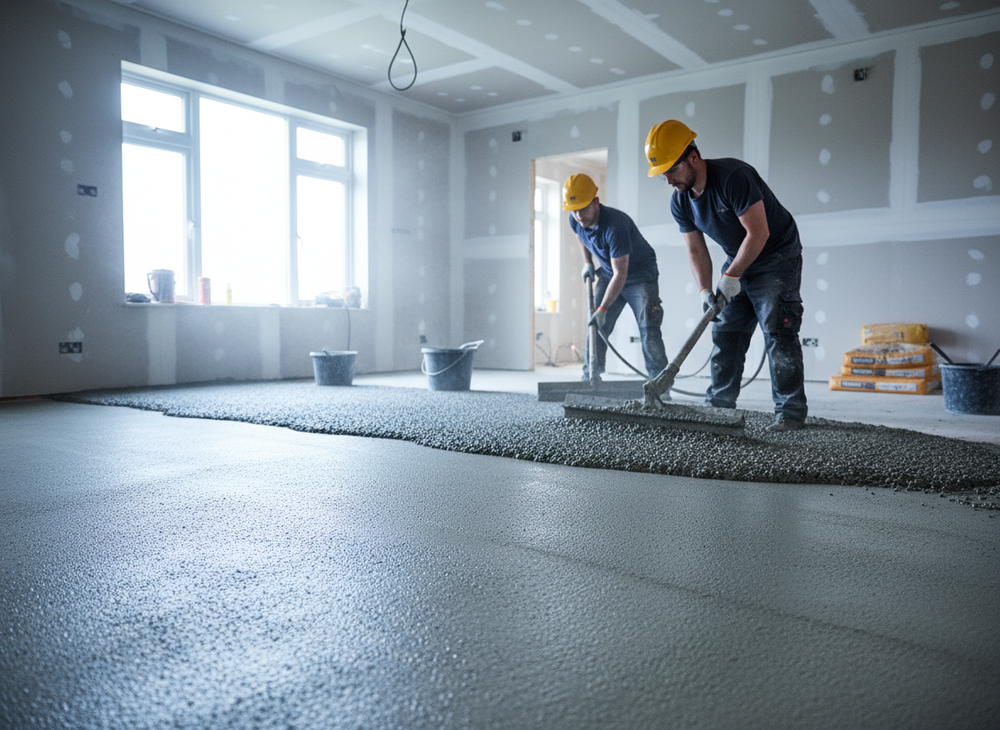

6. Pour floating screed (65–75mm minimum) — do not allow screed to bond to walls
7. Trim flanking strip flush after screed cures

CLD Mat (Automotive)

1. Remove all trim panels to expose bare metal
2. Clean metal with isopropyl alcohol — remove all grease, wax, and undercoating
3. Pre-cut CLD mat to approximate shape of each panel
4. Warm mat slightly (heat gun helps in cold weather) for better adhesion
5. Apply to panel surface and roll firmly using a seam roller — work from centre outward
6. Target 50–70% panel coverage; focus on the largest flat panel sections
7. Layer closed-cell foam over CLD before refitting trim

Frequently Asked Questions

How thick does acoustic rubber underlay need to be?

For residential separating floors in concrete construction, under-screed rubber membranes of 3mm achieve ΔLw ~17 dB; 6mm achieves ΔLw ~22–27 dB. For floating floors without screed (under laminate/tile), 10–15mm recycled rubber provides better performance. Thicker is generally better, but the floating screed depth must be maintained at the correct level above — check the system specification sheet.

Can acoustic rubber underlay be used under underfloor heating?

Yes. Acoustic rubber membranes rated for use with underfloor heating are available. They must have a sufficiently low thermal resistance (typically ≤ 0.15 m²K/W) to avoid excessive heat reduction above the membrane. Always check the manufacturer's thermal resistance data and match to your UFH system design.

What is the difference between acoustic rubber and standard rubber matting?

Standard rubber matting (anti-fatigue, anti-slip) is not formulated for acoustic performance. It may have the wrong density, surface texture (which affects bonding), and may lack the internal damping characteristics required. Always specify acoustic-rated products that carry published ΔLw or Rw test data from an accredited laboratory.

Is recycled rubber acoustic underlay as good as virgin rubber?

In most applications, recycled SBR rubber (from shredded tyres) performs as well as virgin rubber for acoustic purposes, and in some cases better — the granulated structure provides inherent resilience. Environmental credentials are also superior. Look for products with ΔLw test data from a UKAS-accredited laboratory regardless of material source.

How do I calculate how much acoustic rubber I need?

Measure the total floor area in m², add 10% for overlaps and waste (for under-screed, no overlap is required — butt joints are taped). For wall applications, measure wall area and add 15% for overlaps and trimming. Our team can help with project take-offs — contact us with your drawings or measurements.

Can acoustic rubber be used outdoors?

Recycled SBR rubber and neoprene products are suitable for exposed outdoor use. Natural rubber and butyl products may degrade with prolonged UV exposure and should be protected or used in covered applications. MLV/vinyl products are generally not rated for permanent outdoor use. Always check the manufacturer's environmental rating.

Does acoustic rubber insulation reduce thermal transmission?

Rubber materials have relatively low thermal resistance (high thermal conductivity compared to mineral wool or PIR foam). A 6mm rubber membrane contributes approximately 0.01–0.03 m²K/W of thermal resistance — negligible in most building applications. If thermal performance is also required, specify a composite product or add a separate thermal layer.

How long does acoustic rubber insulation last?

Quality acoustic rubber in a correctly installed building application will last the life of the building — typically 50+ years. Recycled SBR rubber underlay is particularly durable. Automotive CLD mats, when correctly bonded to clean metal, are permanent. Avoid products with extremely low density or poor quality adhesive backing, which may delaminate over time.
