Timber Floating Floors — Acoustic Isolation Systems for Residential & Commercial Buildings

Timber floating floor systems represent the most effective and widely specified approach to impact sound reduction in residential buildings, converting existing or new timber joist floors into fully compliant acoustic assemblies. By decoupling the finished floor surface from the underlying structure, a well-designed timber floating floor can reduce impact sound levels by 15–30 dB compared to the base construction — often the difference between a noise complaint and a quiet home.

Sound Deadening UK supplies acoustic floating floor panels, resilient battens, chipboard overlay systems and high-mass boards engineered to meet Building Regulations Approved Document E, BB93 and BS 8233:2014 requirements in new build and refurbishment projects across the UK.

Why Timber Floating Floors Work — The Acoustic Principles

Decoupling — The Core Mechanism

In a conventional timber floor, the structural joists are rigidly fixed to the building frame, and floorboards are nailed or screwed directly to the joists. Every footstep transmits mechanical vibration directly into the structure, which radiates as impact noise in rooms below. A floating floor introduces a resilient layer between the structural floor and the finished surface — breaking this vibration path.

The Resonant Frequency Effect

A floating floor behaves as a mass-spring system. The floating deck (mass) sits on the resilient layer (spring), creating a system with a characteristic resonant frequency determined by the deck mass and the resilient layer's dynamic stiffness (s'). Below this frequency, the system amplifies impact noise slightly; above it, isolation improves at approximately 18 dB per octave. Effective systems are designed with resonant frequencies of 60–80 Hz — well below the range of footstep impact noise (typically 63–2,000 Hz per ISO 10140).

Combined Airborne and Impact Performance

Timber floating floor systems improve both impact and airborne sound insulation when correctly installed. The floating deck adds mass to the floor assembly (improving airborne resistance), while the resilient layer decouples impact vibration. The combination — particularly when acoustic mineral wool is incorporated between joists — can achieve both the airborne (DnT,w) and impact (L'nT,w) requirements of Part E simultaneously.

Timber Floating Floor System Components

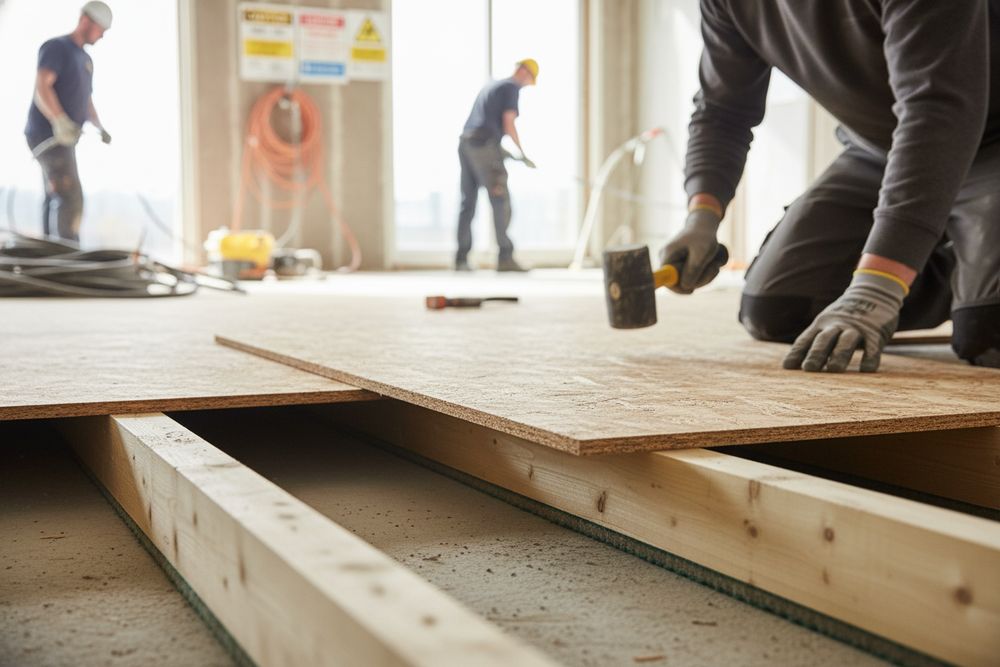

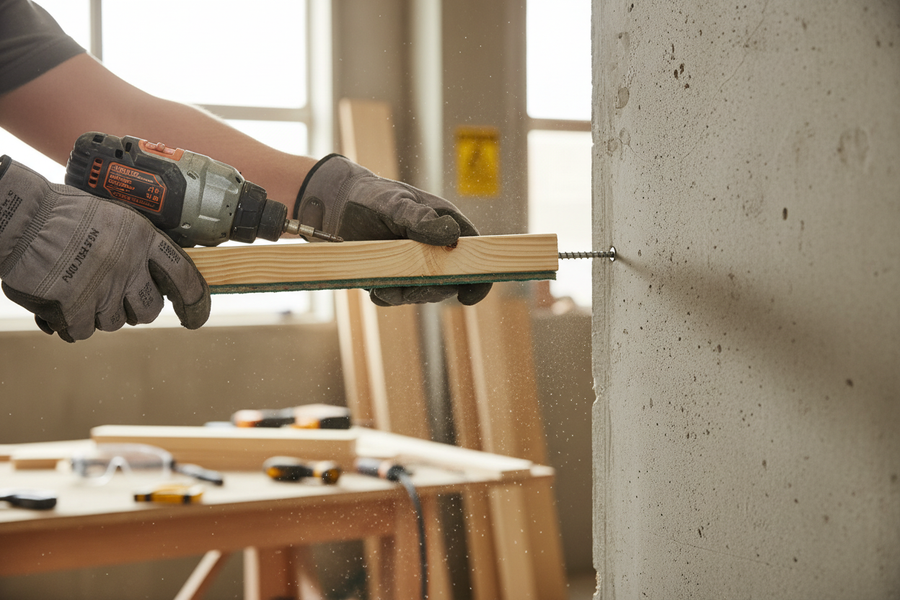

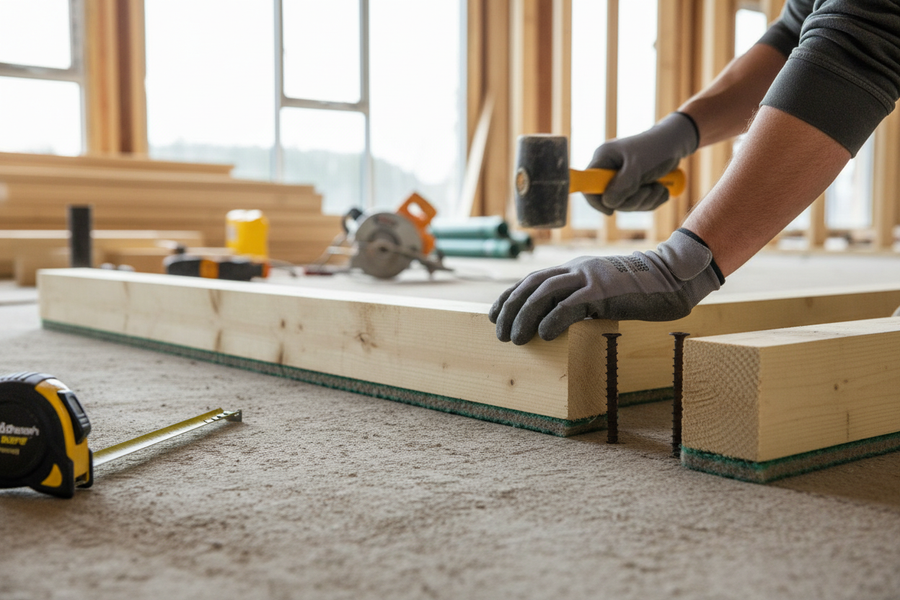

Acoustic Resilient Battens

Acoustic resilient battens replace conventional timber battens in floating floor construction. A dense rubber or neoprene pad is bonded to the base of the timber batten, providing the resilient decoupling between the floating deck and the structural floor. Key specifications:

• Dynamic stiffness: 15–25 MN/m³ (lower = better low-frequency isolation)
• Typical spacing: 400–600mm centres
• Available with 25mm, 38mm or 50mm timber element
• Load capacity: 3–5 kN per batten (residential and commercial rated)
• Impact improvement ΔLw: 12–18 dB on timber joist construction

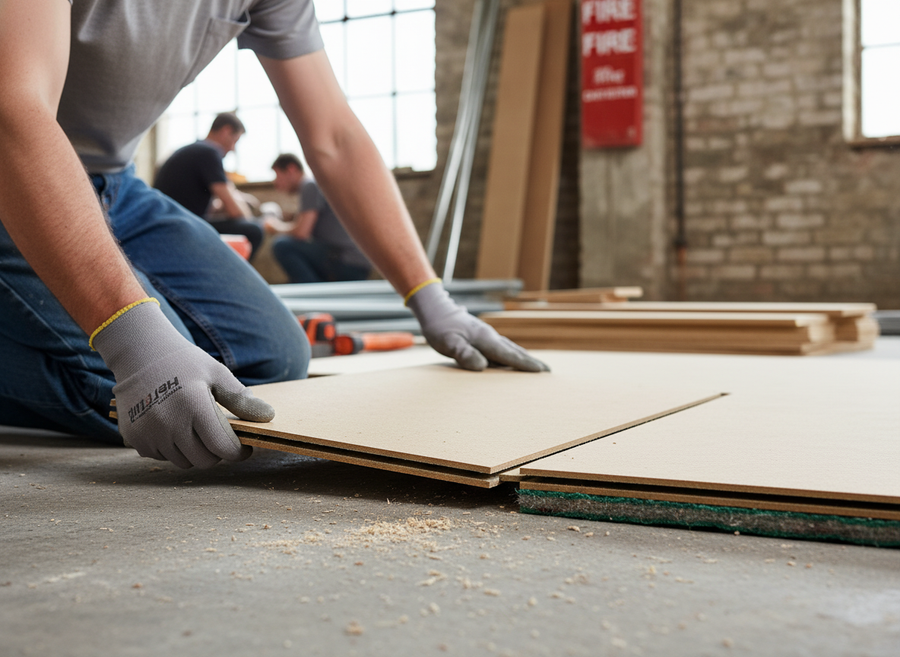

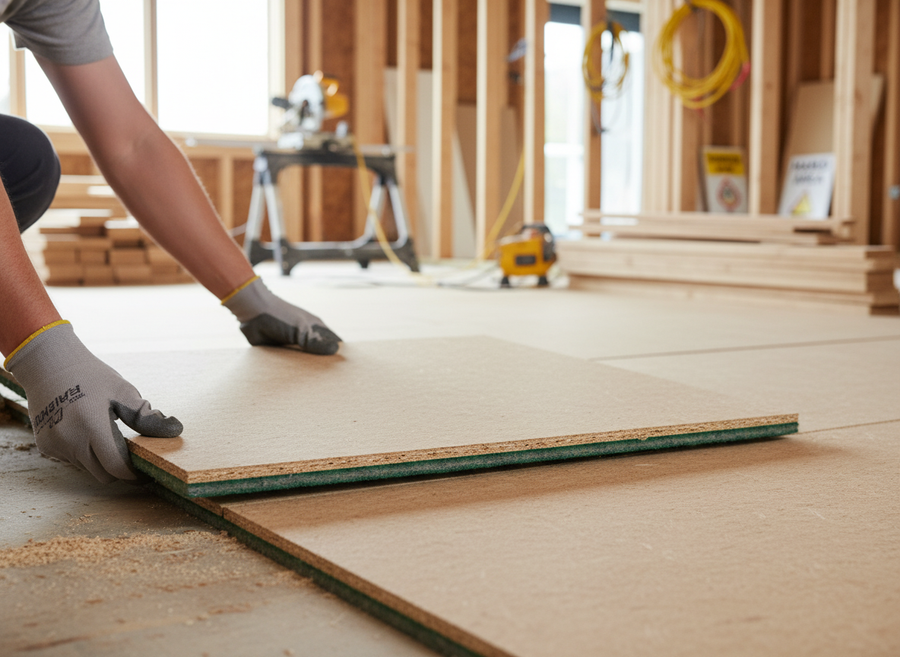

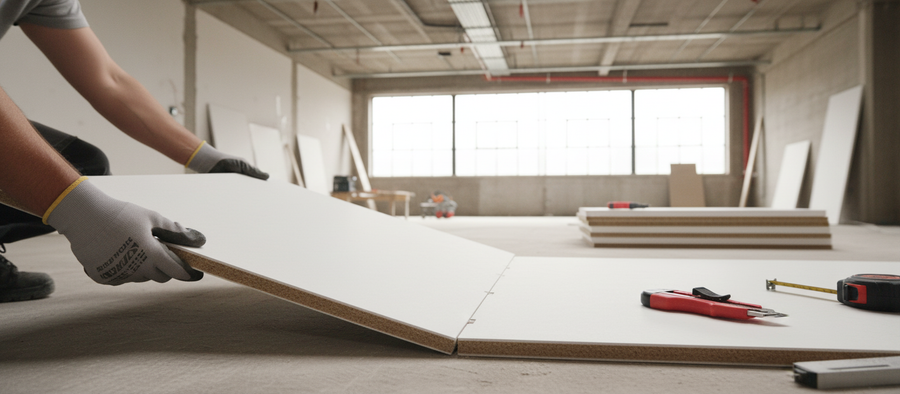

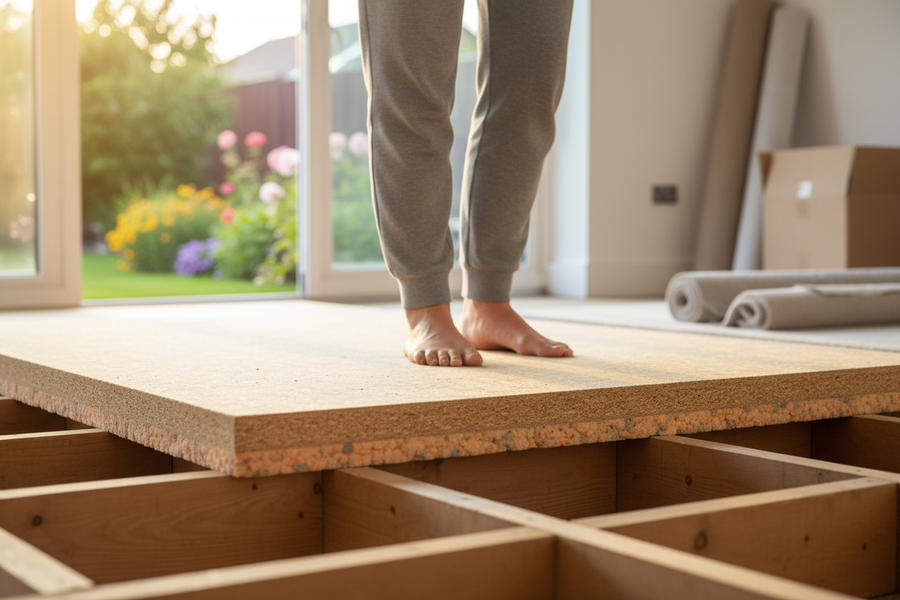

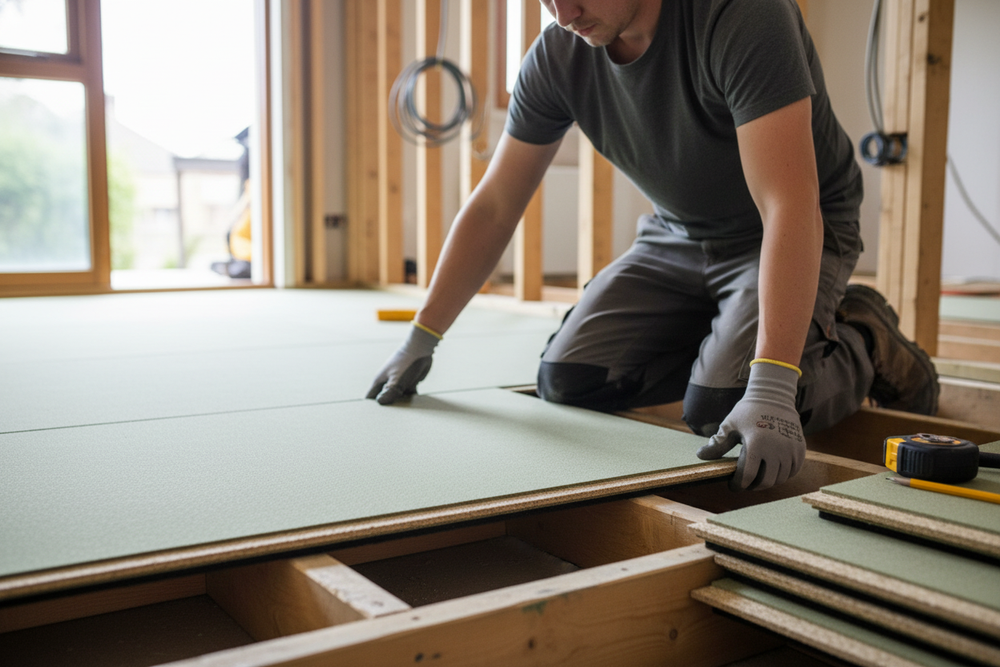

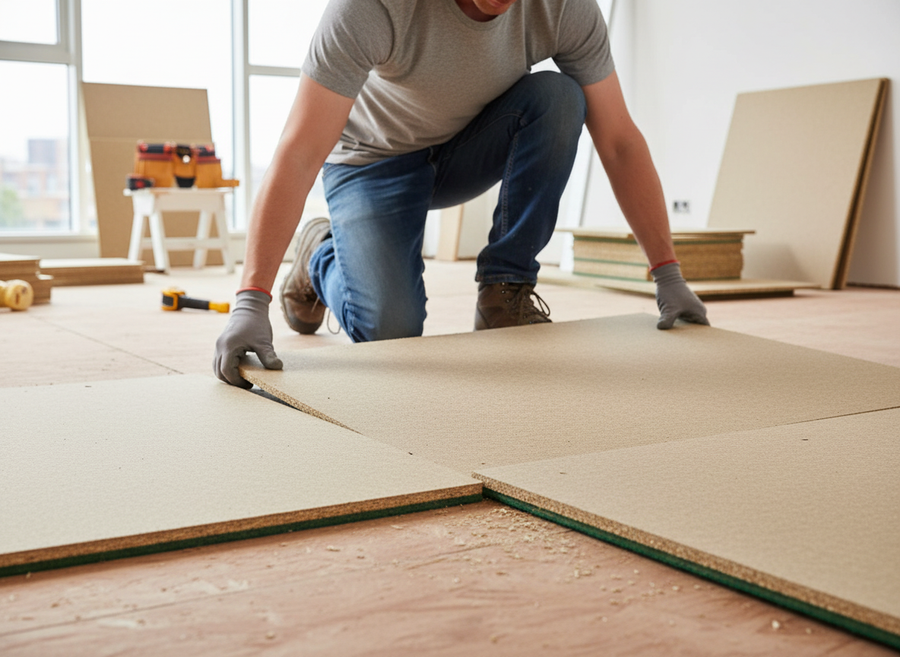

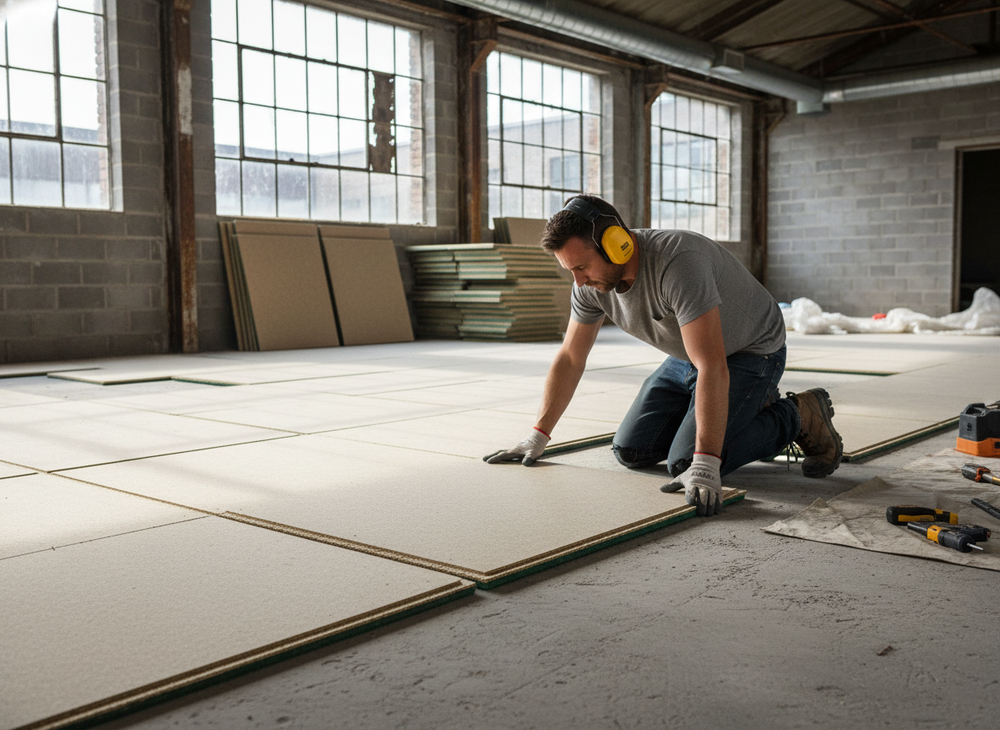

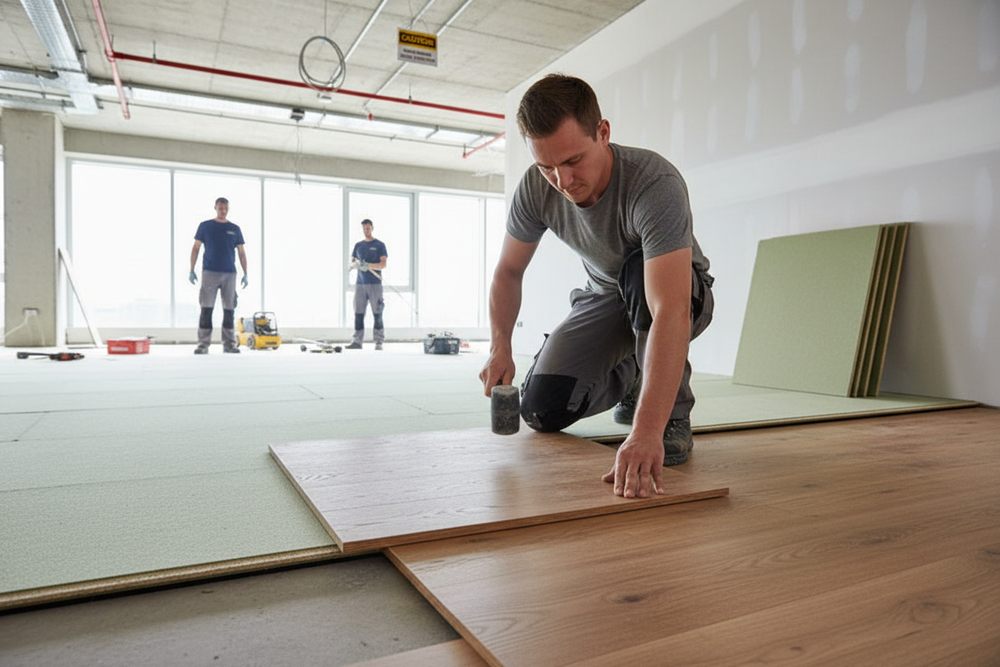

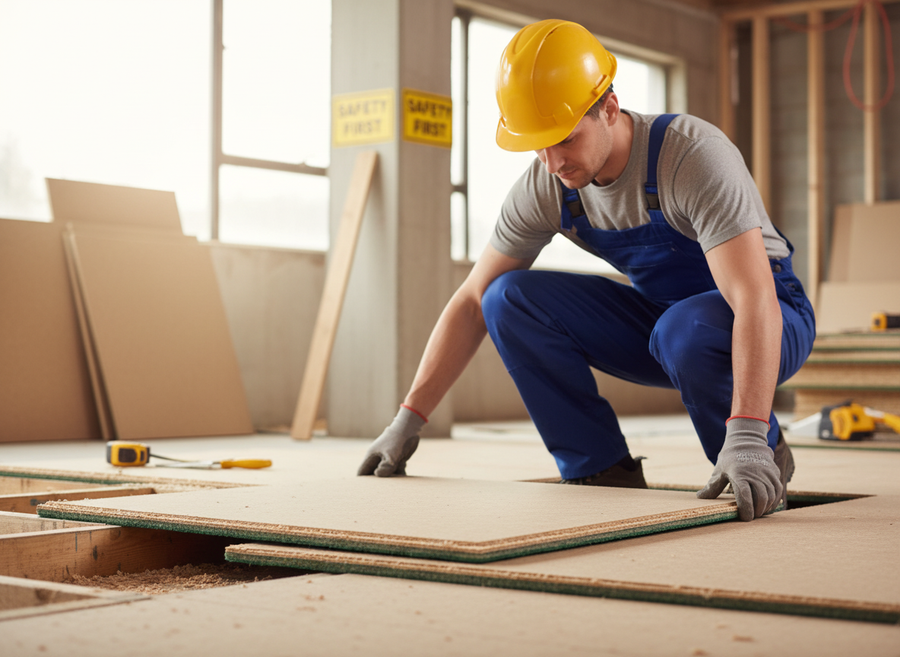

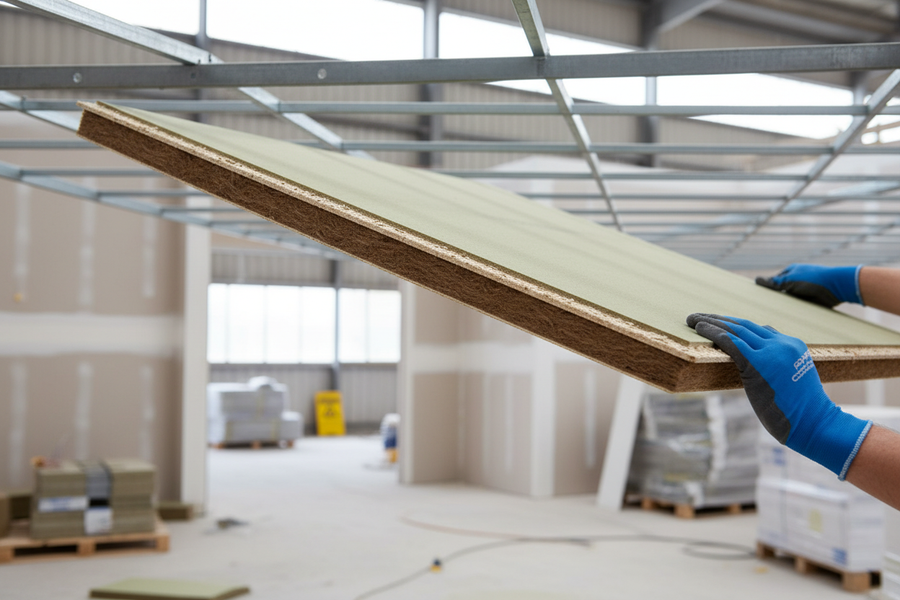

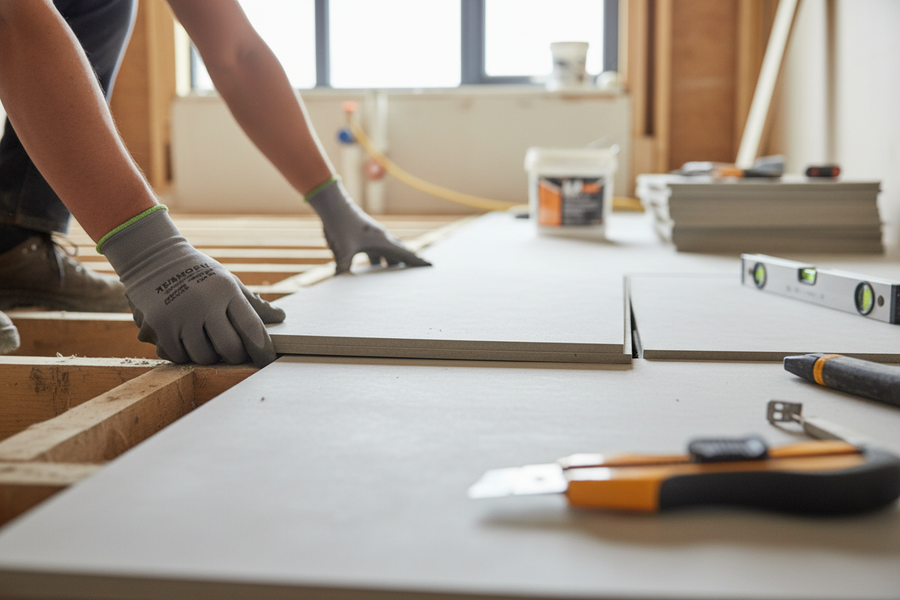

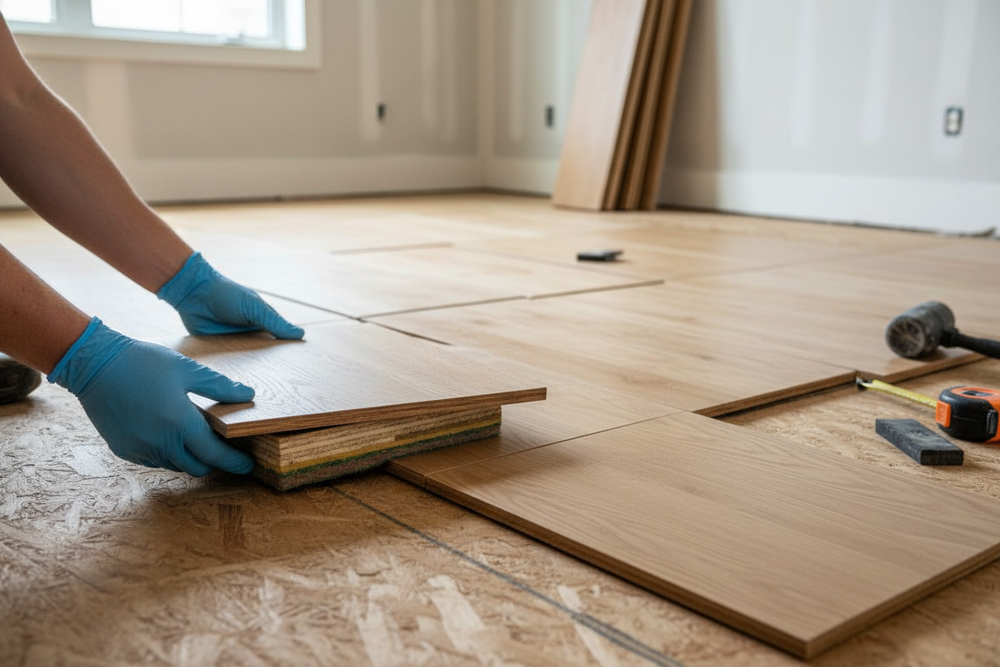

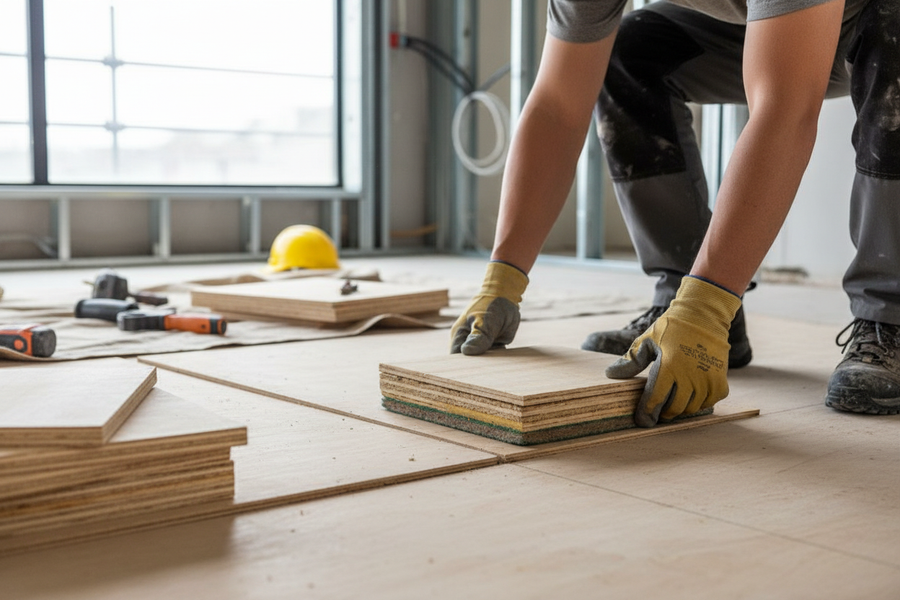

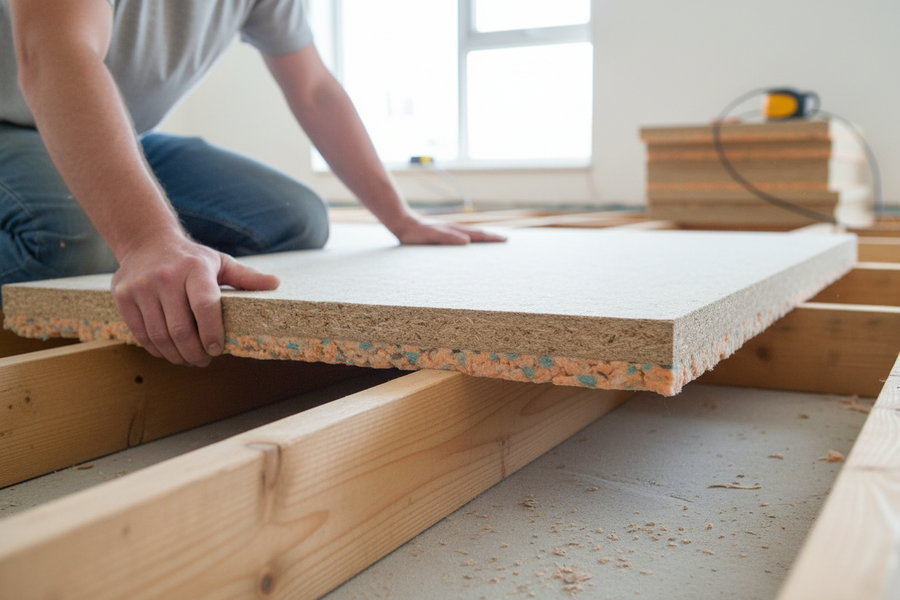

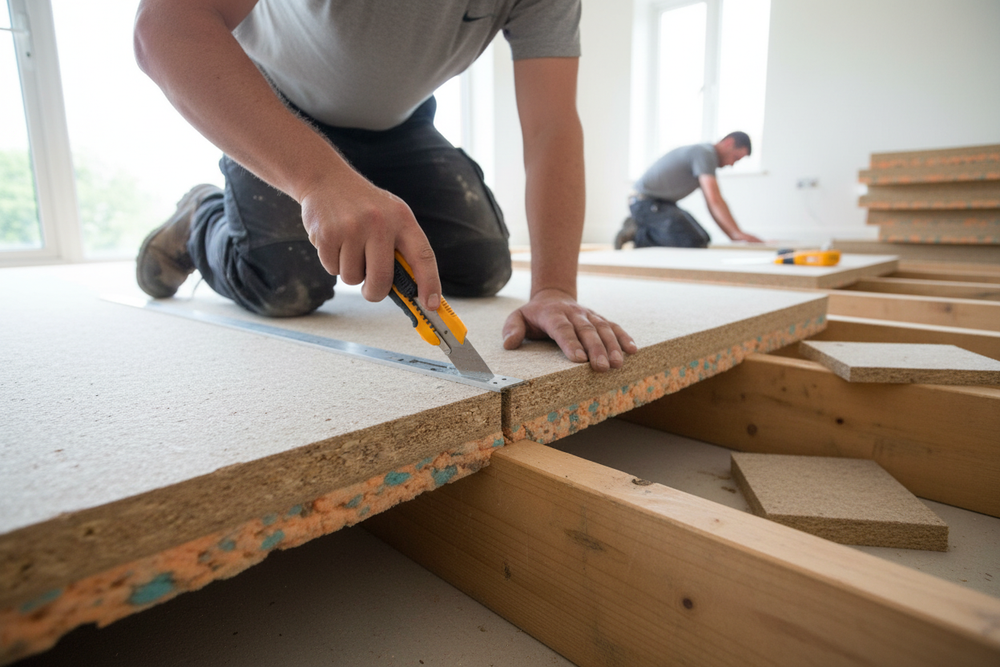

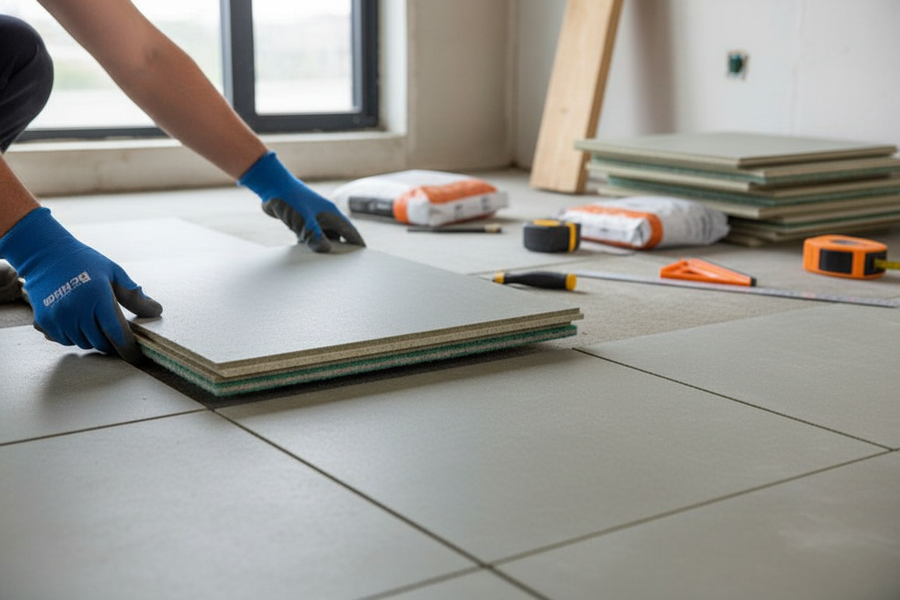

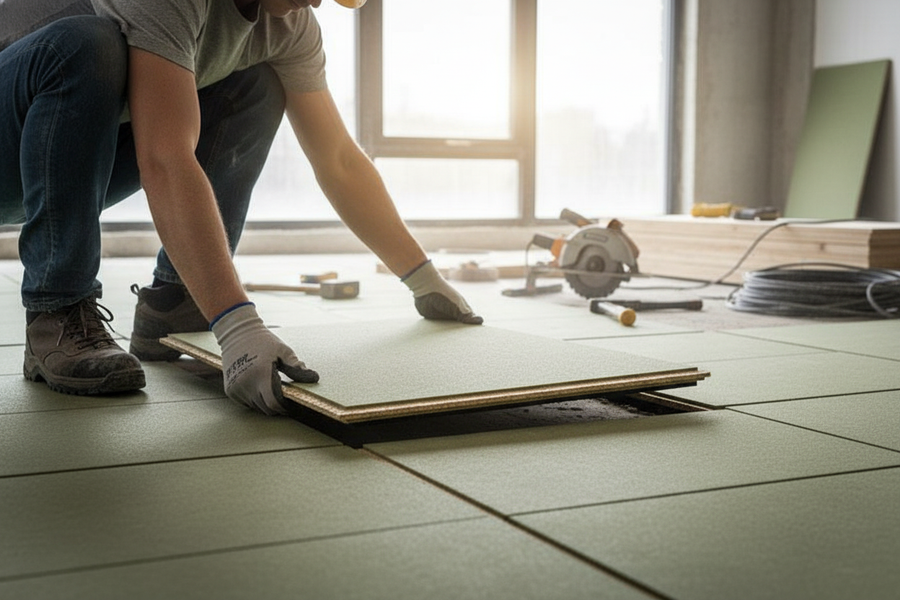

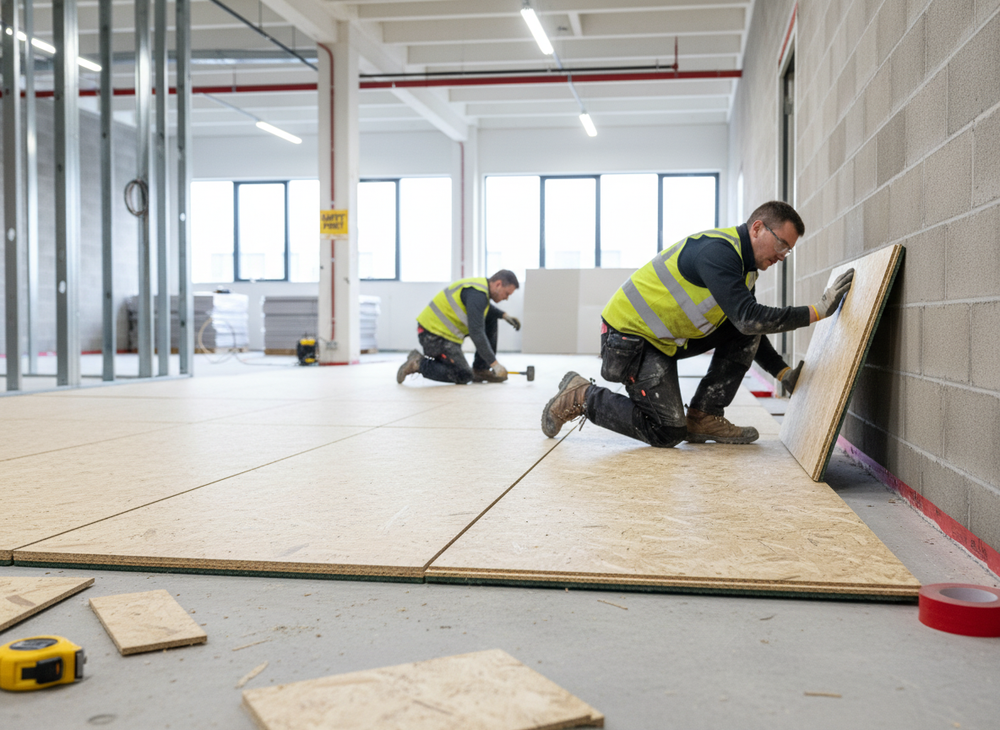

High-Mass Floating Floor Boards

High-mass chipboard or plywood floating floor decks (22–32mm thickness) provide the mass element of the floating system. Tongue-and-groove boards are installed floating on the resilient batten system, with all perimeter edges isolated from walls using acoustic isolation strip. The mass of the deck (typically 15–25 kg/m²) contributes to airborne sound insulation and lowers the resonant frequency of the floating system.

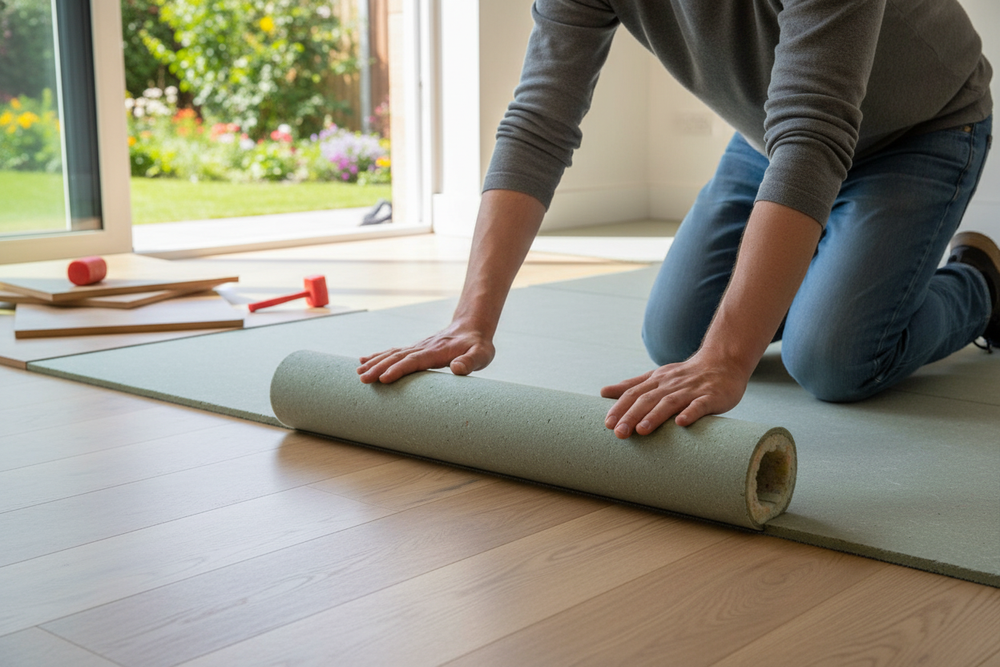

Resilient Acoustic Underlay (Under-Screed)

Where a floating screed rather than a board deck is specified (concrete slab sub-floors, higher mass requirements), a resilient acoustic underlay (5–8mm high-density rubber or composite foam) is laid on the structural slab before the screed is poured. The screed floats on this resilient layer, achieving ΔLw values of 22–32 dB depending on underlay specification and screed mass.

Acoustic Mineral Wool — Between Joist Infill

100mm acoustic mineral wool (60–80 kg/m³) installed between the structural joists significantly enhances both airborne sound insulation and further improves impact isolation by eliminating the air cavity resonance that would otherwise reduce performance. Mineral wool between joists is an essential component of any Part E-compliant timber floor acoustic system, providing approximately +8–12 dB improvement in DnT,w.

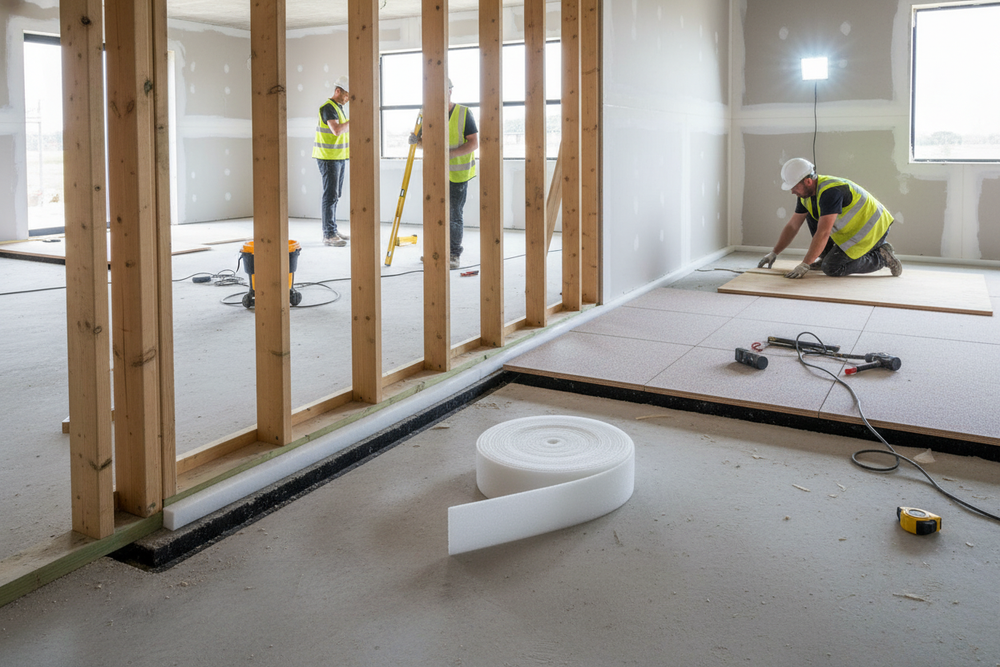

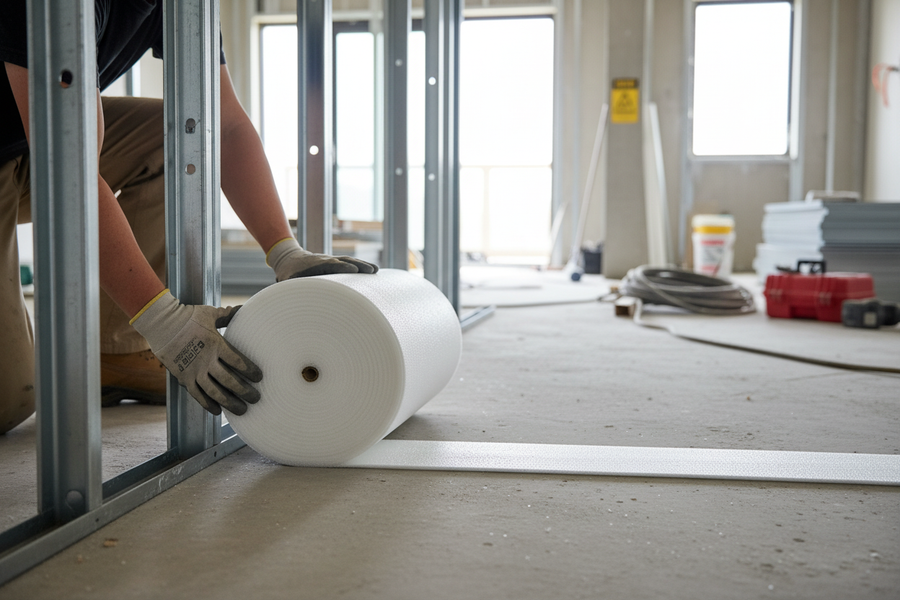

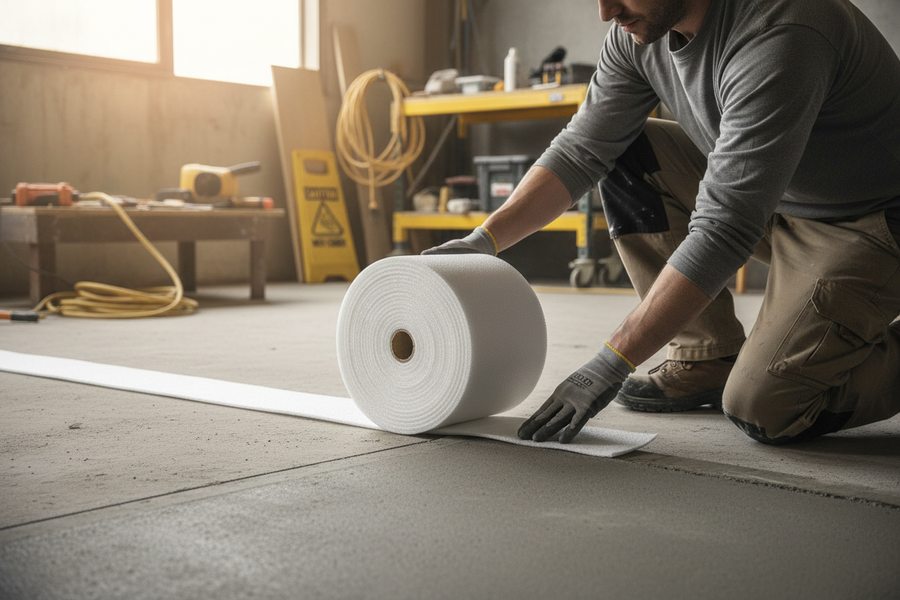

Perimeter Acoustic Isolation Strip

One of the most critical — and most frequently overlooked — components in a floating floor system is the perimeter acoustic isolation strip. This resilient rubber or foam strip is installed between all edges of the floating deck and the surrounding walls, preventing sound bridges that would bypass the resilient batten system entirely. Without correct perimeter isolation, even the highest-specification floating system will underperform significantly.

Performance Data — Timber Floating Floor Systems

Application-Specific Guidance

New Build Timber Frame — Part E Compliance

In timber-frame new build construction, floating floor systems on resilient battens are the primary acoustic floor solution. Combined with 100mm acoustic mineral wool between joists and double plasterboard on resilient bar in the ceiling below, the complete system achieves Part E field test values of L'nT,w 54–60 dB and DnT,w 47–52 dB. This corresponds to a Robust Details-type performance.

House-to-Flats Conversion

Conversion projects typically start with existing timber joist floors achieving L'nT,w 78–85 dB — far exceeding the Part E conversion limit of 64 dB. Retrofitting a resilient batten floating floor on top of the existing boards, combined with acoustic mineral wool between joists (added from below if accessible) and an independent ceiling, is the standard approach. Typical results: L'nT,w 56–62 dB — compliant with Part E conversion standard.

Schools and Educational Buildings — BB93

Sports halls in BB93-compliant schools require robust floating floor systems capable of withstanding heavy ball impacts and dynamic loads from PE activities, while providing the acoustic separation required between the sports hall and adjacent teaching spaces. Heavy-duty resilient battens with compression-rated rubber elements (load capacity 5+ kN/batten) are specified, topped with 32mm high-mass flooring boards. These systems achieve L'nT,w ≤ 55 dB — meeting the BB93 requirements for sports-adjacent spaces.

Home Recording Studios

Studio floating floors require the highest level of isolation, typically targeting L'nT,w ≤ 45 dB or STC 60+. This requires a high-mass floating deck (minimum 25–32mm board + layer of mass loaded vinyl) on very compliant resilient isolators (s' ≤ 10 MN/m³), with careful attention to all perimeter and service penetration details. Our studio-grade floating floor systems are designed for room-within-room constructions where maximum isolation is the priority.

Commercial and Office Refurbishment

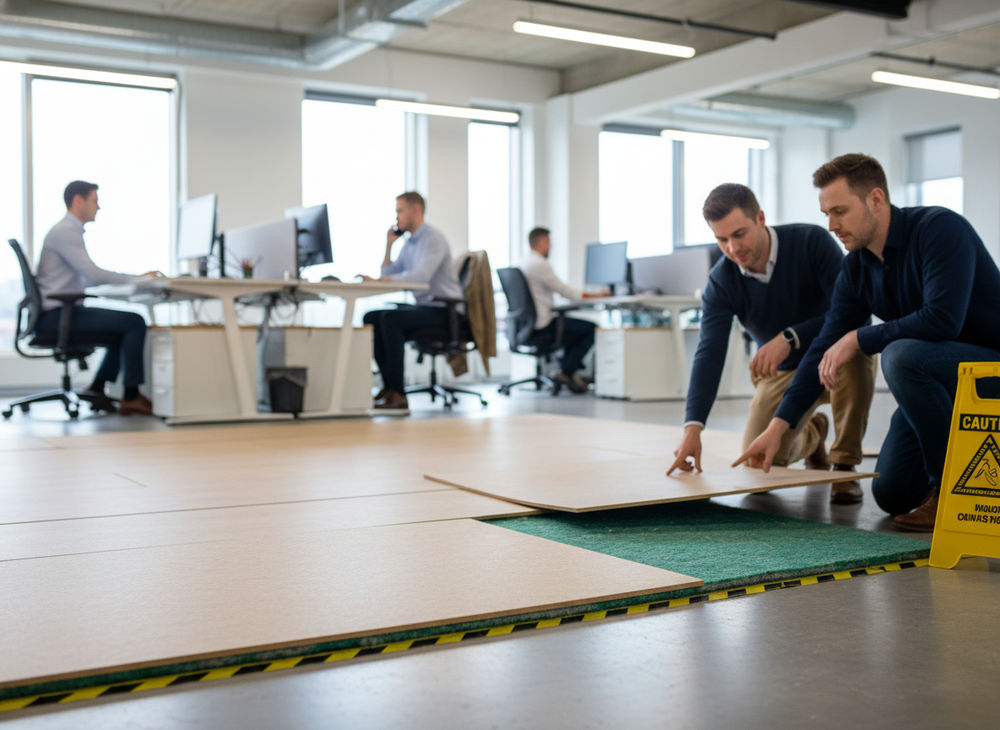

In commercial refurbishments, minimising floor build-up is often critical to maintain floor-to-ceiling heights. Low-profile floating floor systems using 3–5mm high-density rubber underlay under a 22mm floating board achieve ΔLw of 18–22 dB in a total build-up of just 25–27mm — suitable for retrofit in existing commercial buildings with constrained floor-to-ceiling dimensions.

Installation Guidelines — Critical Points

Perimeter Isolation — Non-Negotiable

Every edge of the floating deck must be separated from the surrounding wall with an acoustic isolation strip minimum 5mm thick. This includes door thresholds and hearths. A single direct contact point will create a sound bridge that degrades performance by 10–15 dB regardless of how well the rest of the system is installed.

Services Penetrations

Pipes, cables and conduits passing through the floating floor must be isolated from the deck using acoustic collars or flexible sleeves. Do not pack rigid filler materials hard against the floating deck perimeter.

Underfloor Heating

Wet underfloor heating systems can be incorporated within the floating screed when acoustic rubber underlays rated for UFH temperatures are used. Electric mat systems may be laid above the floating board deck but must not be bonded to fixed elements. Allow for thermal expansion of the floating deck with appropriate expansion joints.

Door Thresholds and Level Changes

At door thresholds between floating and non-floating areas, use acoustic threshold strips that maintain the resilient separation while providing an aesthetically finished transition. Do not use rigid threshold strips that bridge between the floating deck and the structural floor.

Why Choose Sound Deadening UK

• ✓ Complete timber floating floor system components in one place
• ✓ Products specified for Part E, BB93 and BS 8233 compliance
• ✓ Technical design support for your specific floor construction
• ✓ Certified laboratory test data for all system components
• ✓ Trade pricing for contractors and developers
• ✓ Free UK delivery on orders over £50

Explore our related products: Acoustic Rubber Insulation | Acoustic Insulation | Sound Reduction Systems | Airborne & Impact Noise

Frequently Asked Questions

What is a timber floating floor and how does it differ from a conventional floor?

A timber floating floor has its deck — the surface boards — isolated from the underlying structure by a resilient layer (resilient battens, rubber underlay or acoustic isolators). This breaks the structural vibration path, dramatically reducing impact noise transmission to rooms below. In a conventional floor, boards are fixed directly to joists, meaning every footstep transmits vibration directly into the structure. The difference in impact sound level between the two can be as much as 25–30 dB.

Will a timber floating floor meet Building Regulations Part E?

A correctly specified and installed timber floating floor system — including acoustic mineral wool between joists, resilient battens, high-mass deck and perimeter isolation strip — will typically achieve L'nT,w 54–60 dB in new-build constructions, well within the Part E requirement of ≤ 62 dB. For conversion projects, the complete system (floating floor + independent ceiling below) achieves L'nT,w 56–62 dB, meeting the conversion threshold of ≤ 64 dB. We recommend pre-completion testing to verify compliance.

Can I install a floating floor over existing boards without lifting them?

Yes — in refurbishment projects, resilient battens can be installed directly on top of existing floorboards, followed by the floating deck boards. This adds approximately 50–75mm to the floor height (depending on batten height) and requires adjustment of door heights, skirting boards and service penetrations. Access to the joist void for mineral wool installation is desirable but not always essential if the primary goal is impact noise reduction.

What is the minimum build-up depth for a timber floating floor?

The minimum build-up for an effective acoustic floating floor on resilient battens is approximately 50–75mm (25mm batten + 25mm deck board). Where floor depth is very constrained, a 5–6mm rubber underlay system under a 22mm board achieves a total build-up of just 27–28mm, at the cost of lower performance (ΔLw ≈ 18–20 dB vs 22–28 dB for a batten system). The lower-profile system is suitable for commercial refurbishments but may not be sufficient for Part E compliance from a low baseline.

Does a floating floor also improve airborne sound insulation?

Yes, but the improvement to airborne insulation from the floating floor itself is modest (typically +3–5 dB DnT,w). The main airborne improvement comes from filling the joist cavity with acoustic mineral wool (+8–12 dB DnT,w) and from any additional mass layers. A complete system — mineral wool between joists, resilient batten, high-mass deck — typically achieves DnT,w 47–52 dB, meeting Part E requirements for both airborne and impact noise simultaneously.
